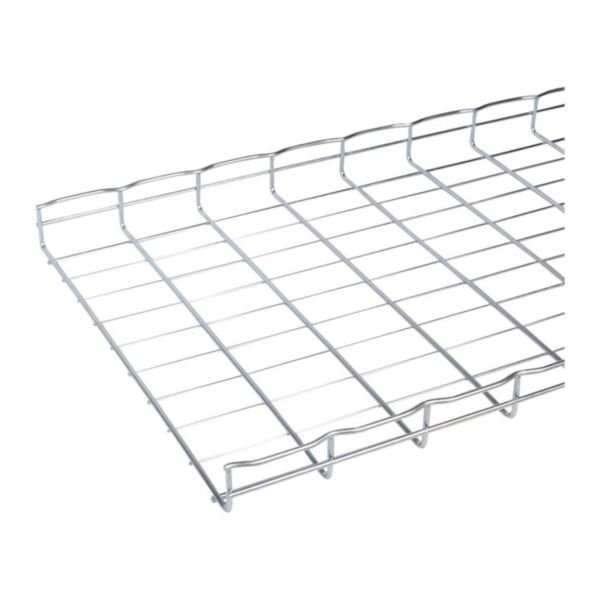

Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Design | Corrosion Resistant | Natural Ventilation | @Each of 1 | by Cablofil
The Cablofil 316L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a U-shape profile and a unique T-welded safety edge that protects both cables and installers. With its pickled and passivated surface, this tray offers enhanced corrosion resistance, making it ideal for commercial and infrastructure wiring installations in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Design | Corrosion Resistant | Natural Ventilation | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000304
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, Corrosion Resistant Cable Tray
Technical Specifications
- Material: Stainless steel 316L (1.4404)
- Profile shape: U-shape
- Width: 500 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 25523 mm²
- Surface protection: Pickled and passivated
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: 3.021 kg/m
- Dimensions (H x L x W): 54mm x 3000mm x 500mm
- Weight: 9.06 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation for greater cable efficiency
- Constructed from high-quality stainless steel 316L (1.4404)
- Pickled and passivated surface for enhanced corrosion resistance
- U-shape profile design
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with structural and safety standards.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacement
- Natural ventilation reduces overheating and energy loss in cable systems
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray 500mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
