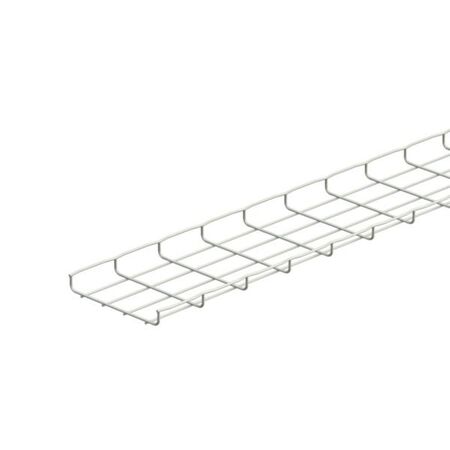

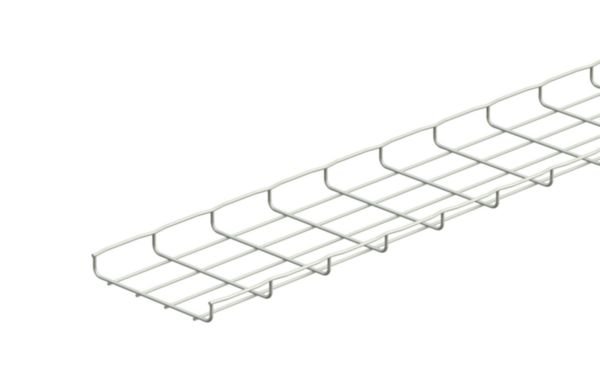

Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | Pickled & Passivated | @Each of 1 | by Cablofil
Cablofil 316L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a U-shape profile that promotes natural ventilation. Made from high-quality stainless steel 316L, it offers superior corrosion resistance and durability, making it ideal for commercial and infrastructure wiring installations, especially in corrosive environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | Pickled & Passivated | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000014
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, 316L Steel Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 50 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 1308 mm²
- Material: Stainless steel 316L (1.4404)
- Surface protection: Pickled and passivated
- Operating temperature: -20°C to 120°C
- Weight: 0.3839712 kg/m
- Dimensions (H x L x W): 30mm x 3000mm x 50mm
- Weight: 1.15 kg
Key Features
- Made from high-quality stainless steel 316L (1.4404) for superior corrosion resistance
- U-shape profile providing natural ventilation for greater cable efficiency
- Pickled and passivated surface protection for enhanced durability
- Operating temperature range from -20°C to 120°C
- Lightweight design at approximately 0.38 kg per meter
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper support and secure cable management.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Corrosive environments requiring stainless steel cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating and energy loss in cable systems
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray 50mm x 30mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
