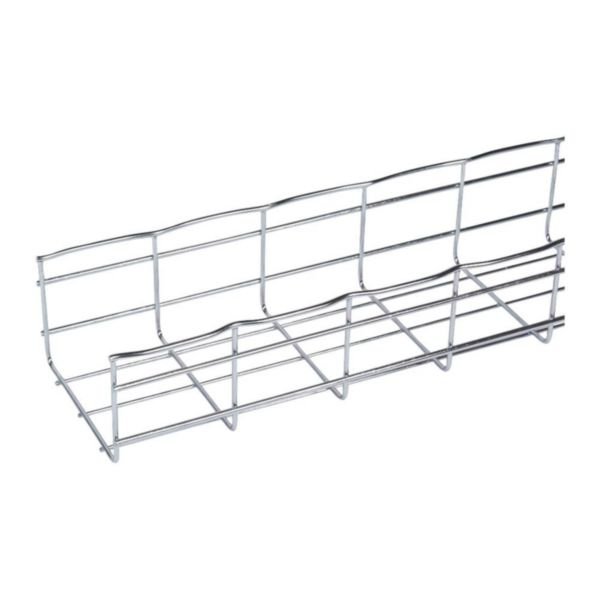

Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | @Each of 1 | by Cablofil
Cablofil 316L Stainless Steel Wire Cable Tray is designed for robust cable management in industrial and commercial settings. Featuring a U-shape profile and a pickled and passivated surface, it ensures enhanced corrosion resistance and natural ventilation for optimal cable efficiency. Ideal for corrosive environments, this tray supports safe and effective cable installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000904
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, 316L Cable Tray, Industrial Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 150 mm
- Height: 105 mm
- Length: 3000 mm
- Usable cross section: 15750 mm²
- Material: Stainless steel 316L (1.4404)
- Surface protection: Pickled and passivated
- Weight: 1.32 kg/m
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Model: Without connector
- Suitable for circuit integrity: No
- Dimensions (H x L x W): 105mm x 3000mm x 150mm
- Weight: 4 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Made from high-quality stainless steel 316L (1.4404)
- Pickled and passivated surface for enhanced corrosion resistance
- U-shape profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper support, secure fixing, and compliance with safety standards.
Applications
- Industrial cable management
- Commercial building wiring
- Data centers and server rooms
- Marine and offshore installations
- Corrosive environments requiring stainless steel cable trays
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Corrosion resistance extends product lifespan reducing waste
- Natural ventilation reduces overheating and energy loss in cables
- Made from recyclable stainless steel material
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray 150mm x 105mm x 3m Length is available for immediate purchase, ideal for industrial, commercial, and corrosive environment cable management applications.
