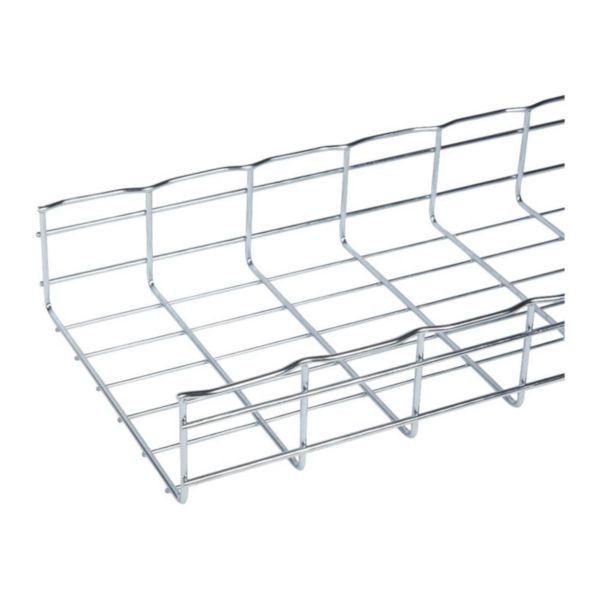

Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | @Each of 1 | by Cablofil
Cablofil 316L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a U-shape profile and a pickled and passivated surface for enhanced durability. Ideal for commercial and infrastructure wiring installations, this cable tray ensures optimal cable support and natural ventilation, making it perfect for environments requiring corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000924
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, 316L Cable Tray
Technical Specifications
- Material: Stainless steel 316L (1.4404)
- Profile shape: U-shape
- Width: 300 mm
- Height: 105 mm
- Length: 3000 mm
- Usable cross section: 31500 mm²
- Surface protection: Pickled and passivated
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: 2.295734 kg/m
- Dimensions (H x L x W): 105mm x 3000mm x 300mm
- Weight: 6.9 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- U-shape profile for optimal cable support
- Pickled and passivated surface protection for durability
- Constructed from high-quality stainless steel 316L (1.4404)
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with structural and safety standards.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance minimizes environmental contamination risks
- Supports efficient cable ventilation reducing energy loss
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray 300mm x 105mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
