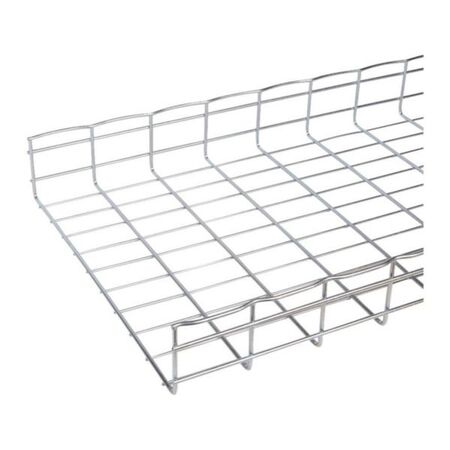

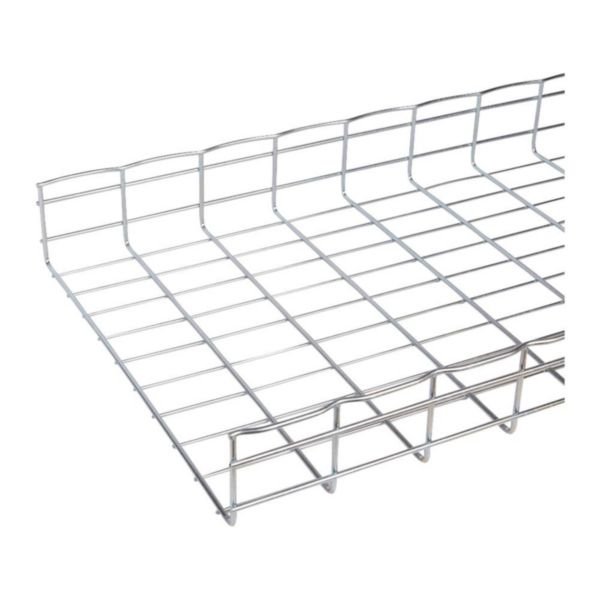

Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | @Each of 1 | by Cablofil
Cablofil 316L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a U-shape profile and pickled and passivated surface for enhanced corrosion resistance. Ideal for commercial and outdoor installations, this durable tray ensures optimal cable support and natural ventilation, making it perfect for corrosive environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000944
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, 316L Cable Tray
Technical Specifications
- Material: Stainless steel 316L (1.4404)
- Surface Protection: Pickled and passivated
- Profile Shape: U-shape
- Width: 500 mm
- Height: 105 mm
- Length: 3000 mm
- Usable Cross Section: 52500 mm²
- Operating Temperature: -20 to 120 °C
- Storage Temperature: -20 to 120 °C
- Weight: 3.4 kg per meter
- Dimensions (H x L x W): 105mm x 3000mm x 500mm
- Weight: 10.2 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- U-shape profile for optimal cable support
- Pickled and passivated surface protection for corrosion resistance
- Made from high-quality stainless steel 316L (1.4404)
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with local electrical and building codes.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Outdoor and corrosive environments requiring stainless steel durability
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray 500mm x 105mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
