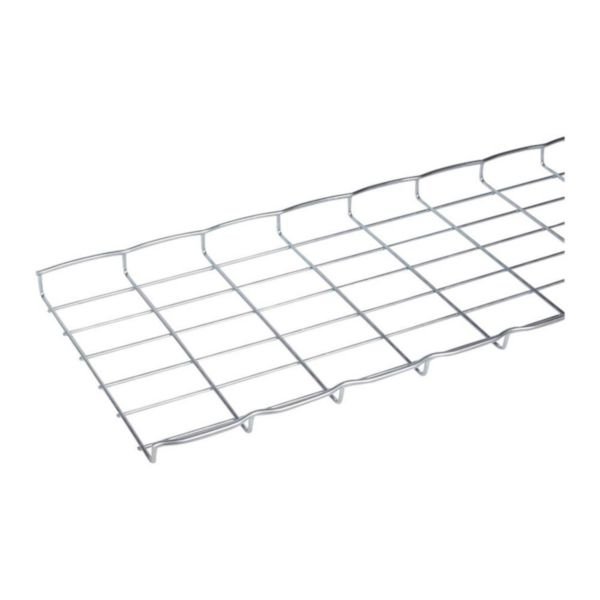

Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Design | Pickled & Passivated Surface | @Each of 1 | by Cablofil
Cablofil 316L Stainless Steel Wire Cable Tray is designed for effective industrial cable management, featuring a robust U-shape profile and a pickled and passivated surface for enhanced durability. Ideal for corrosive environments, this cable tray ensures superior corrosion resistance and natural ventilation, making it perfect for commercial and infrastructure wiring installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Design | Pickled & Passivated Surface | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000054
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, 316L Steel Cable Tray
Technical Specifications
- Material: Stainless steel 316L (1.4404)
- Profile shape: U-shape
- Width: 300 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 7953 mm²
- Surface protection: Pickled and passivated
- Operating temperature range: -20 to 120 °C
- Weight: Approximately 1.36 kg per meter
- Dimensions (H x L x W): 30mm x 3000mm x 300mm
- Weight: 4.1 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Made from high-quality stainless steel 316L for superior corrosion resistance
- Pickled and passivated surface protection for durability
- U-shape profile for robust cable support
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with structural and safety standards.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Corrosive environments requiring stainless steel cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray 300mm x 30mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
