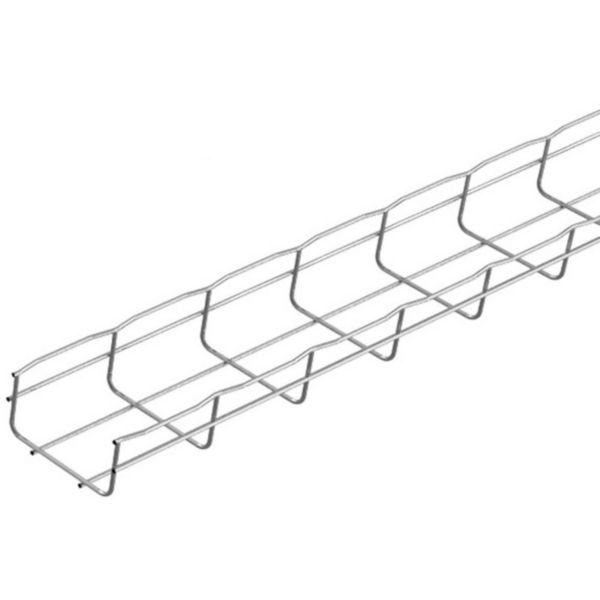

Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | Corrosion Resistant | @Each of 1 | by Cablofil
Cablofil 316L Stainless Steel Wire Cable Tray is designed for effective cable management in industrial and commercial settings. Featuring a U-shape profile and a pickled and passivated surface for enhanced durability, this tray ensures superior corrosion resistance and natural ventilation for optimal cable efficiency. Ideal for outdoor and harsh environments, it meets AS/NZS 1170 standards for structural integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000074
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, 316L Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 100 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 5143 mm²
- Material: Stainless steel 316L (1.4404)
- Surface protection: Pickled and passivated
- Operating temperature: -20 to 120 °C
- Storage temperature: -20 to 120 °C
- Weight: 0.7559 kg/m
- Dimensions (H x L x W): 54mm x 3000mm x 100mm
- Weight: 2.27 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Made from high-quality stainless steel 316L for superior corrosion resistance
- Pickled and passivated surface protection for durability
- U-shape profile for secure cable support
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building codes.
Applications
- Industrial and commercial cable management
- Electrical wiring installations requiring corrosion resistance
- Outdoor and harsh environment cable routing
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life reducing waste
- Natural ventilation design improves cable efficiency and reduces overheating risks
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray 100mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
