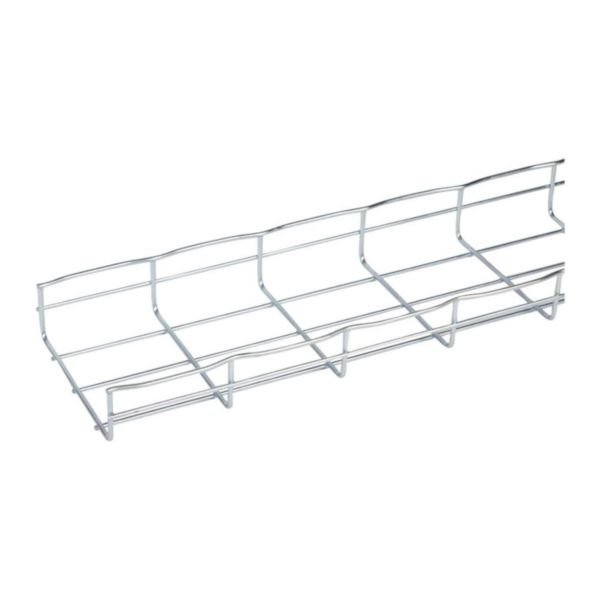

Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Design | Pickled & Passivated Surface | @Each of 1 | by Cablofil
The Cablofil 316L Stainless Steel Wire Cable Tray is designed for efficient cable management in industrial and commercial settings. Featuring a U-shape profile and a pickled and passivated surface for enhanced durability, this tray ensures superior corrosion resistance and natural ventilation for optimal cable efficiency. Ideal for outdoor and corrosive environments, it meets AS/NZS 1170 standards for structural design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Design | Pickled & Passivated Surface | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000084
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, 316L Cable Tray
Technical Specifications
- Material: Stainless steel 316L (1.4404)
- Profile shape: U-shape
- Width: 150 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 7728 mm²
- Surface protection: Pickled and passivated
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: Approximately 0.9 kg per meter
- Dimensions (H x L x W): 54mm x 3000mm x 150mm
- Weight: 2.7 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Made from high-quality stainless steel 316L for superior corrosion resistance
- Pickled and passivated surface protection for enhanced durability
- U-shape profile for optimal cable support
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems and structural support requirements to ensure safety and compliance.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Outdoor and corrosive environments requiring stainless steel cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance minimizes environmental impact from material degradation
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray 150mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
