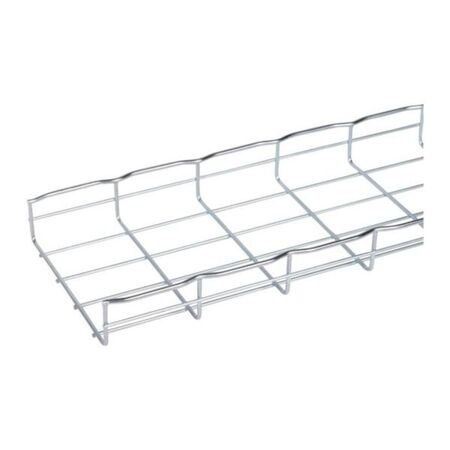

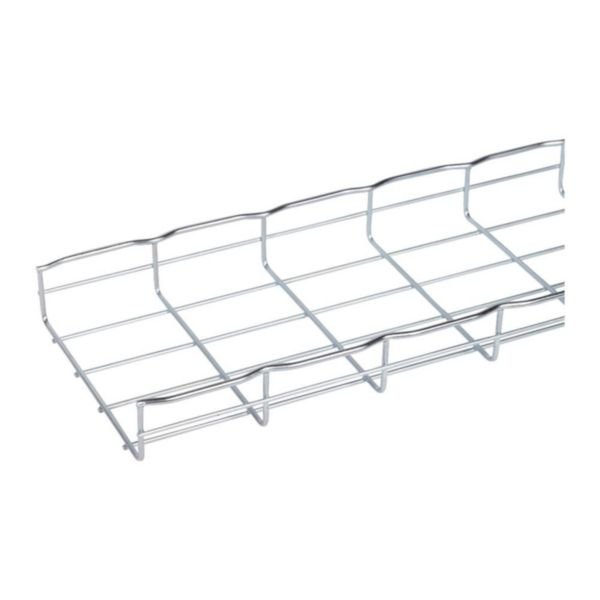

Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | Corrosion Resistant | @Each of 1 | by Cablofil
Cablofil 316L Stainless Steel Wire Cable Tray is designed for effective industrial cable management, featuring a robust U-shape profile and pickled and passivated surface for enhanced durability. Ideal for commercial wiring and data centers, this tray ensures natural ventilation for greater cable efficiency while providing a unique T-welded safety edge to protect both cables and installers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000094
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, Industrial Cable Tray
Technical Specifications
- Material: Stainless steel 316L (1.4404)
- Surface Protection: Pickled and passivated
- Profile Shape: U-shape
- Width: 200 mm
- Height: 54 mm
- Length: 3000 mm
- Usable Cross Section: 10293 mm²
- Weight: 1.168 kg/m
- Operating Temperature Range: -20°C to 120°C
- Storage Temperature Range: -20°C to 120°C
- Model: Without connector
- No integrated partition
- Not suitable for circuit integrity
- Dimensions (H x L x W): 54mm x 3000mm x 200mm
- Weight: 3.5 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Made from high-quality stainless steel 316L for corrosion resistance
- Pickled and passivated surface protection for durability
- U-shape profile for robust cable support
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with safety standards.
Applications
- Industrial cable management
- Commercial building wiring
- Data centers and telecommunication cable routing
- Marine and offshore cable installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Constructed from recyclable stainless steel material
- Long service life reduces need for replacement and waste
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray 200mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
