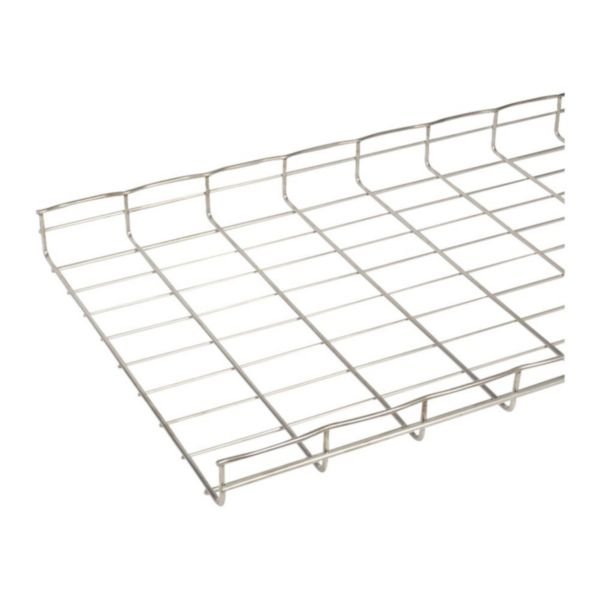

Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | @Each of 1 | by Cablofil

BRAND: Cablofil
SKU: CM000254
$1,362.70 List price: $1,698.10
1 EA ($1,362.70 per EA)
+
Cablofil 316L Stainless Steel Wire Cable Tray is designed for robust industrial cable management, featuring a U-shape profile and pickled and passivated surface for enhanced corrosion resistance. Ideal for both indoor and outdoor applications, this tray ensures natural ventilation for greater cable efficiency, making it perfect for commercial building wiring and corrosive environments.

Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | @Each of 1 | by Cablofil

Brand: Cablofil

SKU: CM000254

Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, Industrial Cable Tray

Technical Specifications
  • Material: Stainless steel 316L (1.4404)
  • Surface Protection: Pickled and passivated
  • Profile Shape: U-shape
  • Width: 450 mm
  • Height: 54 mm
  • Length: 3000 mm
  • Usable Cross Section: 22968 mm²
  • Weight: 2.83 kg/m
  • Operating Temperature: -20 to 120 °C
  • Storage Temperature: -20 to 120 °C
  • Model: Without connector
  • Integrated Partition: None
  • Suitable for Circuit Integrity: No
  • Dimensions (H x L x W): 54mm x 3000mm x 450mm
  • Weight: 8.5 kg
Key Features
  • Unique T-welded safety edge protects cables and installers
  • Natural ventilation for greater cable efficiency
  • U-shape profile for robust cable support
  • Pickled and passivated surface protection for corrosion resistance
  • Made from high-quality stainless steel 316L (1.4404)
Professional Installation Requirements
  • Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with safety standards.
Applications
  • Industrial cable management
  • Commercial building wiring
  • Outdoor and indoor cable routing
  • Corrosive environments requiring stainless steel durability
Standards & Compliance
  • AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Stainless steel construction ensures long product life and recyclability
  • Natural ventilation reduces overheating and energy loss in cables
Warranty Information

Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.

Available Now

The Cablofil 316L Stainless Steel Wire Cable Tray 450mm x 54mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
