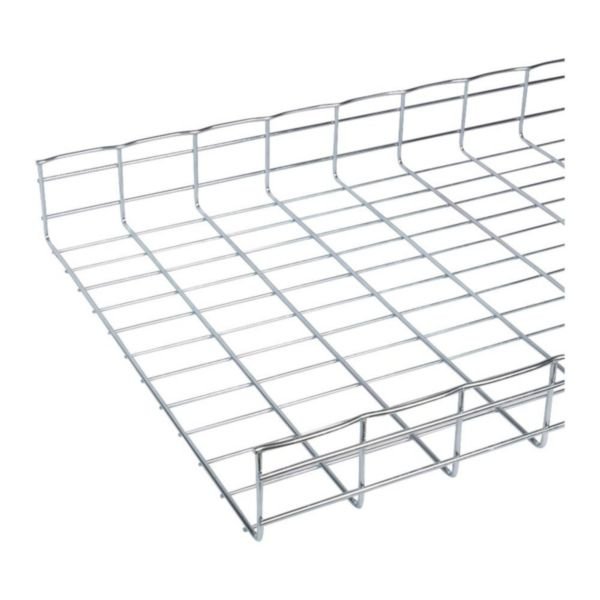

Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | Pickled & Passivated Surface | Unique T-Welded Safety Edge | @Each of 1 | by Cablofil
Cablofil 316L Stainless Steel Wire Cable Tray is designed for robust cable management in industrial and commercial settings. Featuring a U-shape profile and a pickled and passivated surface for enhanced corrosion resistance, this tray ensures natural ventilation for greater cable efficiency. Ideal for corrosive environments, it provides a secure and safe solution for all your wiring installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Stainless steel 316L (1.4404)
- Surface Protection: Pickled and passivated
- Profile Shape: U-shape
- Width: 600 mm
- Height: 105 mm
- Length: 3000 mm
- Usable Cross Section: 63000 mm²
- Weight: 3.782 kg/m
- Operating Temperature: -20 to 120 °C
- Storage Temperature: -20 to 120 °C
- Integrated Partition: None
- Suitable for Circuit Integrity: No
- Model: Without connector
- Dimensions (H x L x W): 105mm x 3000mm x 600mm
- Weight: 11.35 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Made from high-quality stainless steel 316L (1.4404)
- Pickled and passivated surface for enhanced corrosion resistance
- U-shape profile for robust cable support
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper support and secure cable management in compliance with safety standards.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Corrosive environments requiring stainless steel cable trays
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray 600mm x 105mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
