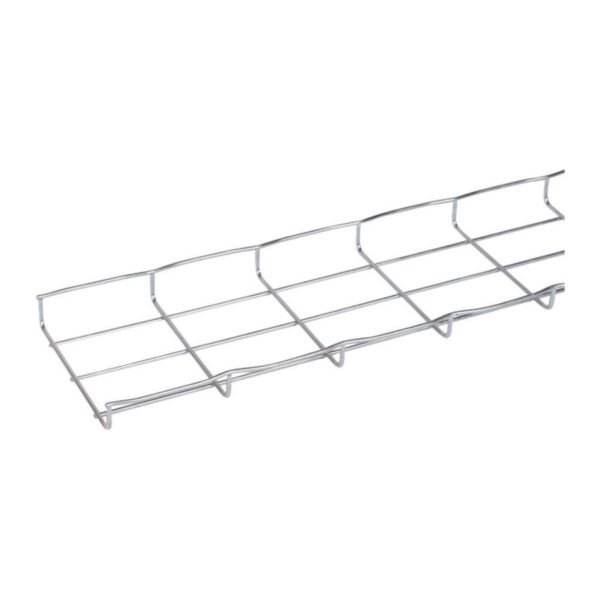

Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | T-Welded Safety Edge | Corrosion Resistant | @EA of 1 | by Cablofil
The Cablofil 316L Stainless Steel Wire Cable Tray is designed for robust cable management in industrial and commercial settings. Featuring a U-shape profile and unique T-welded safety edge, it ensures secure cable support while providing natural ventilation for efficiency. Built from high-quality stainless steel 316L, this tray is perfect for corrosive environments, ensuring durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | T-Welded Safety Edge | Corrosion Resistant | @EA of 1 | by Cablofil
Brand: Cablofil
SKU: CM000034
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, 316L Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 150 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 3978 mm²
- Material: Stainless steel 316L (1.4404)
- Surface protection: Pickled and passivated
- Operating temperature: -20 to 120 °C
- Storage temperature: -20 to 120 °C
- Weight: Approximately 0.66 kg per meter
- Dimensions (H x L x W): 30mm x 3000mm x 150mm
- Weight: 2 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- U-shape profile for robust cable support
- Pickled and passivated surface protection for corrosion resistance
- Made from high-quality stainless steel 316L (1.4404)
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with safety standards.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Corrosive environments requiring stainless steel cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray 150mm x 30mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
