Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | T-Welded Safety Edge | Corrosion Resistant | @EA of 1 | by Cablofil

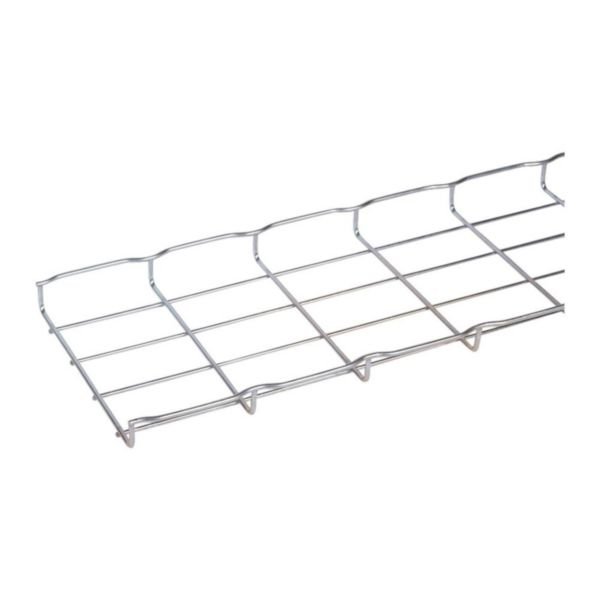

Cablofil 316L Stainless Steel Wire Cable Tray is designed for robust cable management with a U-shape profile and unique T-welded safety edge, ensuring protection for both cables and installers. Ideal for industrial and commercial applications, this tray offers enhanced corrosion resistance and natural ventilation, making it perfect for corrosive environments and efficient cable management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Profile | T-Welded Safety Edge | Corrosion Resistant | @EA of 1 | by Cablofil
Brand: Cablofil
SKU: CM000044
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, 316L Steel Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 200 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 5293 mm²
- Material: Stainless steel 316L (1.4404)
- Surface protection: Pickled and passivated
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: 0.9197 kg/m
- Dimensions (H x L x W): 30mm x 3000mm x 200mm
- Weight: 2.76 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Made from high-quality stainless steel 316L (1.4404)
- Pickled and passivated surface for enhanced corrosion resistance
- U-shape profile for robust cable support
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with safety standards.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Corrosive environments requiring stainless steel cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and recyclability
- Natural ventilation reduces overheating and energy loss in cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray 200mm x 30mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
