Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Design | Unique T-Welded Safety Edge | Pickled Surface Protection | @Each of 1 | by Cablofil

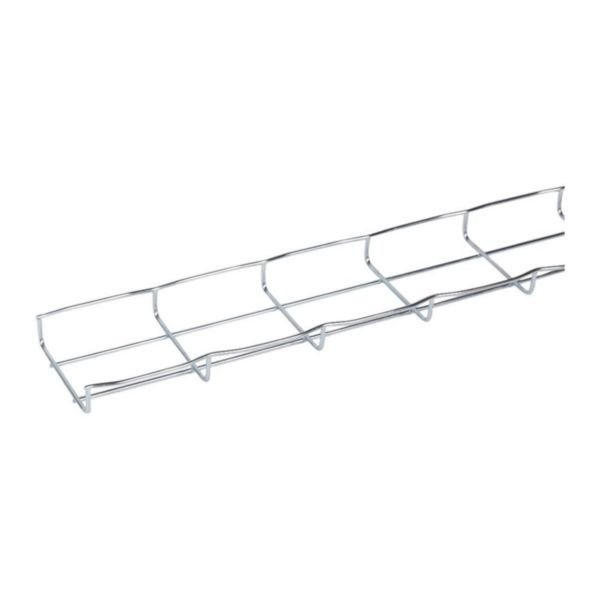

Cablofil 316L Stainless Steel Wire Cable Tray is designed for efficient industrial cable management, featuring a U-shape profile and unique T-welded safety edge to protect cables and installers. Built from high-quality stainless steel 316L, it offers superior corrosion resistance and durability, making it ideal for commercial and corrosive environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil 316L Stainless Steel Wire Cable Tray | U-Shape Design | Unique T-Welded Safety Edge | Pickled Surface Protection | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000024
Alternatively Known As: Stainless Steel Cable Tray, Wire Mesh Cable Tray, Cable Management Tray, 316L Cable Tray
Technical Specifications
- Material: Stainless steel 316L (1.4404)
- Profile shape: U-shape
- Width: 100 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 2643 mm²
- Surface protection: Pickled and passivated
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: Approximately 0.52 kg per meter
- Dimensions (H x L x W): 30mm x 3000mm x 100mm
- Weight: 1.56 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Made from high-quality stainless steel 316L for superior corrosion resistance
- Pickled and passivated surface protection for durability
- U-shape profile for secure cable support
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with safety standards.
Applications
- Industrial cable management
- Commercial and infrastructure wiring installations
- Corrosive environments requiring stainless steel cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
- Supports efficient cable management reducing energy losses
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil 316L Stainless Steel Wire Cable Tray 100mm x 30mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
