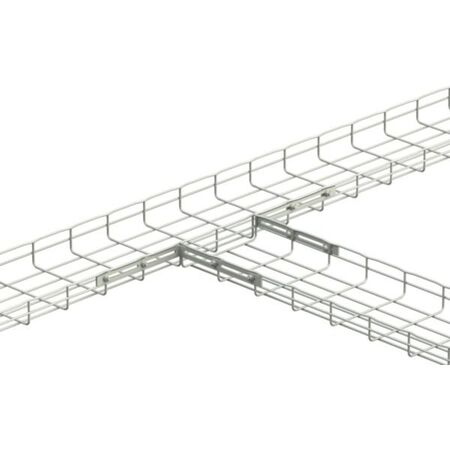

Cablofil Electro Zinc Steel Wire Cable Tray 90° Angle Support | Corrosion Resistant | Screw Connector | Halogen Free | @Each of 1 | by Cablofil

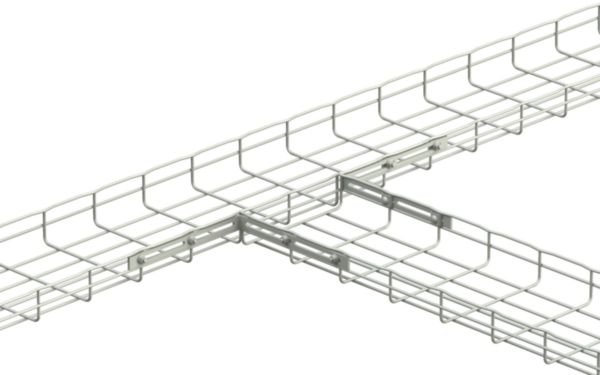

The Cablofil Electro Zinc Steel Wire Cable Tray 90° Angle Support is designed for secure and reliable support of wire mesh cable trays at 90° angles. Made from electro-zinc plated steel, it offers excellent corrosion resistance and is suitable for cable support systems ranging from 50 to 600 mm in width. Ideal for industrial and commercial applications, this support ensures compliance with AS/NZS 1170 standards, making it perfect for data centers and manufacturing plants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Steel with galvanic/electrolytic zinc plating
- Suitable for wire mesh trays only, not for cable ladders or trays
- Connection type: Screw connector
- Suitable cable support system width: 50-600 mm
- Suitable cable support system height: 50 mm
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Hinged joint horizontal: Yes
- Hinged joint vertical: No
- Circuit integrity: No
- Dimensions (H x L x W): 50mm x 450mm x 50mm
- Weight: 1.2 kg
Key Features
- Electro-zinc plated steel for corrosion resistance
- Designed for 90° angle support in wire mesh cable tray systems
- Screw connector type for secure attachment
- Suitable for cable support system widths from 50 to 600 mm
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable management systems to ensure secure and compliant mounting.
Applications
- Supports and secures wire mesh cable trays at 90° angles in electrical installations
- Used in industrial, commercial, and infrastructure cable management systems
- Ideal for cable routing and support in data centers, manufacturing plants, and building wiring
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro-zinc plating extends product life reducing replacement frequency and waste
- Halogen free materials reduce environmental impact in case of fire
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 90° Angle Support EZT90EZ is available for immediate purchase, ideal for industrial and commercial cable management installations.
