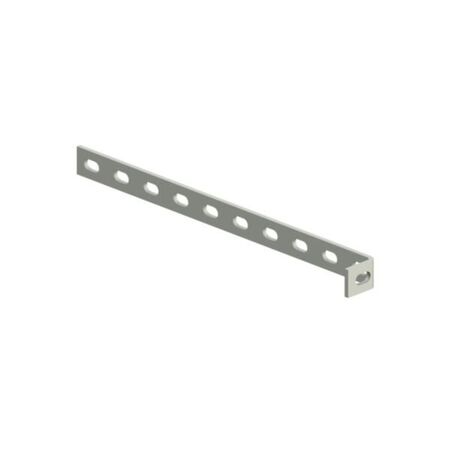

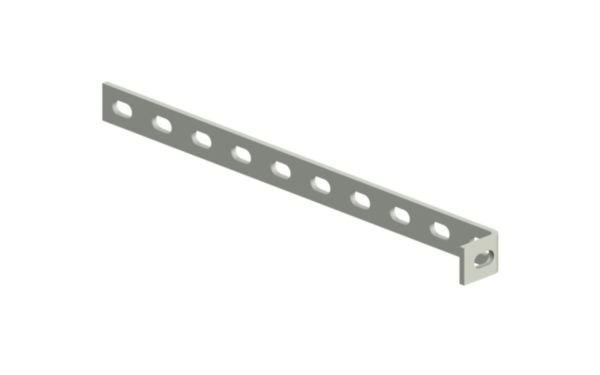

Cablofil Electro Zinc Steel Wire Cable Tray Angle Joint Strip | Corrosion Resistant | Screw Connector | Hinged Horizontal Joint | @EA of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray Angle Joint Strip is designed for reliable cable management, featuring corrosion-resistant electro-zinc plated steel and a secure screw connector for easy installation. Ideal for industrial and commercial applications, this 250mm strip supports cable trays with widths from 50 to 600mm, ensuring flexible and compliant connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray Angle Joint Strip | Corrosion Resistant | Screw Connector | Hinged Horizontal Joint | @EA of 1 | by Cablofil
Brand: Cablofil
SKU: CM558211
Alternatively Known As: Cable Tray Angle Joint Strip, Wire Mesh Cable Tray Connector, Cable Tray Tee Joint, Electro Zinc Cable Tray Joint
Technical Specifications
- Material: Steel with electro-zinc plating
- Length: 250 mm
- Suitable for cable support system width: 50-600 mm
- Suitable for cable support system height: 50 mm
- Type of connection: Screw connector
- Hinged joint horizontal: Yes
- Hinged joint vertical: No
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Dimensions (H x L x W): 50mm x 250mm x 50mm
- Weight: 0.3 kg
Key Features
- Electro-zinc plated steel for corrosion resistance
- Screw connector type for secure and easy installation
- Hinged horizontal joint for flexible cable tray connections
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure and compliant cable tray connections.
Applications
- Used for joining wire mesh cable trays at angles to create tees in cable management systems
- Suitable for cable support systems with widths from 50 to 600 mm and heights of 50 mm
- Ideal for industrial, commercial, and infrastructure cable routing and support
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro-zinc plating provides long-lasting corrosion resistance, reducing the need for frequent replacements
- Halogen free materials contribute to safer environmental and health conditions
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray Angle Joint Strip 250mm is available for immediate purchase, ideal for industrial and commercial cable management systems.
