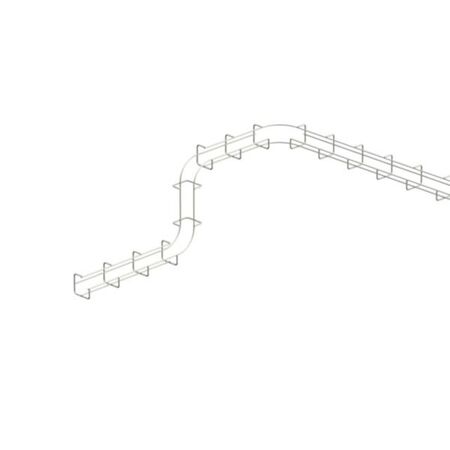

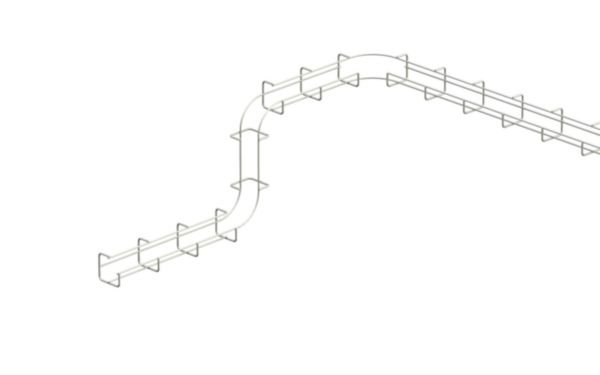

Cablofil Electro Zinc Steel Wire Cable Tray | G-Shape Profile | Flexible Design | Corrosion Resistant | @Each of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in industrial and commercial settings. With a G-shape profile and flexible steel construction, it allows for easy bending and shaping, ensuring optimal routing of electrical cables. Its electro zinc plated surface provides excellent corrosion resistance, making it ideal for environments that demand durability and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | G-Shape Profile | Flexible Design | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM430111
Alternatively Known As: Steel Wire Cable Tray, Flexible Cable Tray, Electro Zinc Cable Tray, G-Shape Cable Tray
Technical Specifications
- Profile shape: G-shape
- Width: 50 mm
- Height: 50 mm
- Length: 3000 mm
- Usable cross section: 2500 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Weight: 0.41385 kg/m
- Dimensions (H x L x W): 50mm x 3000mm x 50mm
- Weight: 1.24 kg
Key Features
- Straight edge design with G-shape profile
- Natural ventilation for greater cable efficiency
- Electro zinc plated surface for corrosion resistance
- Flexible steel wire construction allowing easy bending and shaping
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified electricians or cable management specialists is recommended to ensure compliance with electrical standards and safety.
Applications
- Cable management in industrial and commercial electrical installations
- Supporting and routing electrical cables in data centers, factories, and buildings
- Suitable for environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro zinc plating extends product life reducing replacement frequency and waste
- Steel material is recyclable contributing to sustainable resource use
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray Flexible 50mm x 50mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
