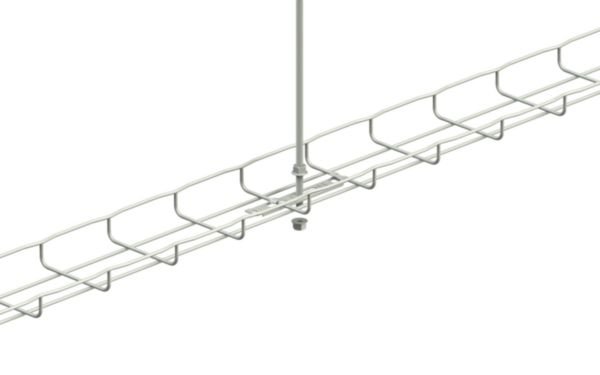

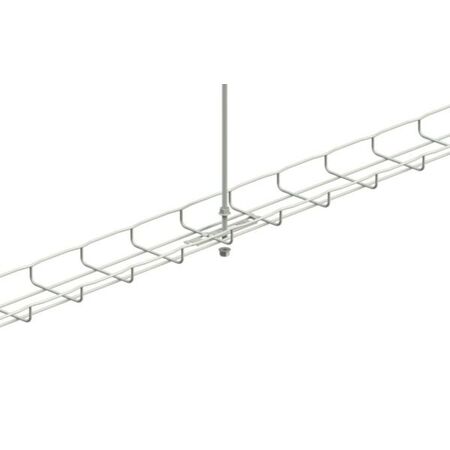

Cablofil Electro Zinc Steel Wire Cable Tray Suspension Hanger | 600 N Load Capacity | Designed for 100 & 150 mm Tray Widths | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray Suspension Hanger is engineered for robust support in electrical installations, accommodating tray widths of 100 mm and 150 mm. With a load-bearing capacity of 600 N and electro zinc plating for corrosion resistance, this non-adjustable hanger is perfect for industrial and commercial cable management systems, ensuring secure and compliant suspension.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray Suspension Hanger | 600 N Load Capacity | Designed for 100 & 150 mm Tray Widths | by Cablofil
Brand: Cablofil
SKU: CM586031
Alternatively Known As: Cable Tray Suspension Hanger, Cable Tray Support Hanger, Electro Zinc Cable Tray Hanger
Technical Specifications
- Material: Steel with galvanic/electrolytic zinc plating
- Suitable tray widths: 100 mm and 150 mm
- Load bearing capacity: 600 N
- Length: 140 mm
- Width: 20 mm
- Height: 9.5 mm
- Thread size (metric): 8
- Non-adjustable, no hinging
- Not suitable for circuit integrity applications
- Dimensions (H x L x W): 9.5mm x 140mm x 20mm
- Weight: 0.1 kg
Key Features
- Designed for 100 and 150 mm tray widths
- Electro zinc plated steel for corrosion resistance
- Load bearing capacity of 600 N
- Non-adjustable suspension hanger
- Galvanic/electrolytic zinc plated surface protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure secure and compliant suspension of cable trays.
Applications
- Supports cable trays in electrical installations
- Suitable for industrial and commercial cable management systems
- Used in construction and building projects for cable tray suspension
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro zinc plating extends product life reducing replacement frequency
- Steel material is recyclable contributing to sustainability
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray Suspension Hanger is available for immediate purchase, ideal for industrial and commercial cable management applications.
