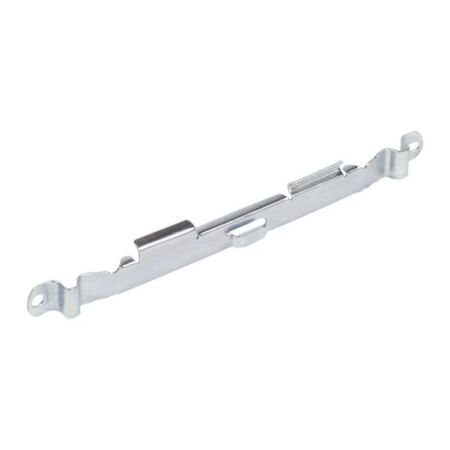

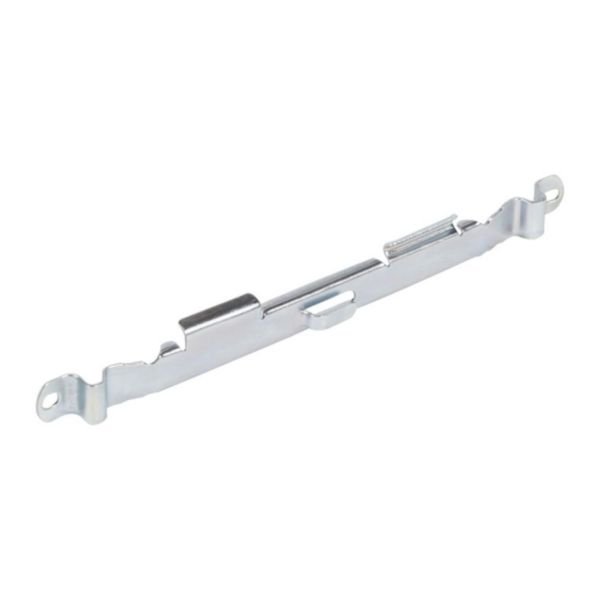

Cablofil Electro Zinc Steel Wire Cable Tray Tool Mounted Coupler | Snapable Connection | Corrosion Resistant | Halogen Free | @Each of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray Tool Mounted Coupler features a snapable connection for quick installation and is designed for joining wire mesh cable trays in electrical installations. With a corrosion-resistant electro-zinc plated surface and halogen-free material, it ensures safety and compliance in industrial and commercial wiring projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray Tool Mounted Coupler | Snapable Connection | Corrosion Resistant | Halogen Free | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM558241
Alternatively Known As: Wire Mesh Cable Tray Coupler, Electro Zinc Cable Tray Joiner, Tool Mounted Cable Tray Coupler
Technical Specifications
- Material: Steel with galvanic/electrolytic zinc plating
- Type of connection: Snapable
- Hinged joint horizontal: Yes
- Hinged joint vertical: No
- Suitable for wire mesh tray: Yes
- Suitable for cable ladder: No
- Suitable for cable tray: No
- Suitable for cable support system width: 50-600 mm
- Suitable for cable support system height: 50 mm
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Length: 250 mm
- Dimensions (H x L x W): 50mm x 250mm x 50mm
- Weight: 0.3 kg
Key Features
- Snapable type of connection for quick and secure installation
- Hinged joint horizontal for ease of assembly
- Supplied with one fixing tool in each pack of 50 couplers
- Electro-zinc plated surface for corrosion resistance
- Suitable for wire mesh trays but not for cable ladders or trays
- Halogen free material for safety and environmental compliance
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure secure and compliant cable tray connections.
Applications
- Used for joining wire mesh cable trays in electrical installations
- Suitable for cable support systems with widths from 50 to 600 mm
- Ideal for industrial, commercial, and infrastructure wiring projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental and health impact
- Electro-zinc plating extends product life reducing waste
- Durable steel construction supports long-term reuse and recycling
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray Tool Mounted Coupler is available for immediate purchase, ideal for electrical wiring and cable management systems in industrial and commercial applications.
