Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 100mm x 30mm | @Each of 1 | by Cablofil

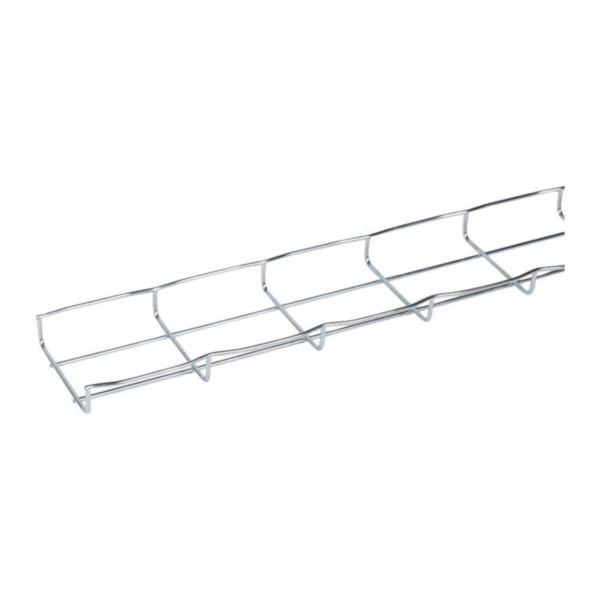

The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. Featuring a robust U-shape profile and an electro zinc plated surface for corrosion resistance, it supports and routes electrical cables effectively. Ideal for both indoor and outdoor use, this tray ensures natural ventilation to enhance cable lifespan and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 100mm x 30mm | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000021
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Cable Management Tray, Wire Mesh Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 100 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 2643 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Weight: 0.536 kg/m
- Dimensions (H x L x W): 30mm x 3000mm x 100mm
- Weight: 1.61 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Electro zinc plated surface for corrosion resistance
- U-shape profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building codes.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for indoor and outdoor use where corrosion resistance is required
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro zinc plating extends product life reducing replacement frequency and waste
- Ventilated design improves cable lifespan by preventing overheating
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 100mm x 30mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
