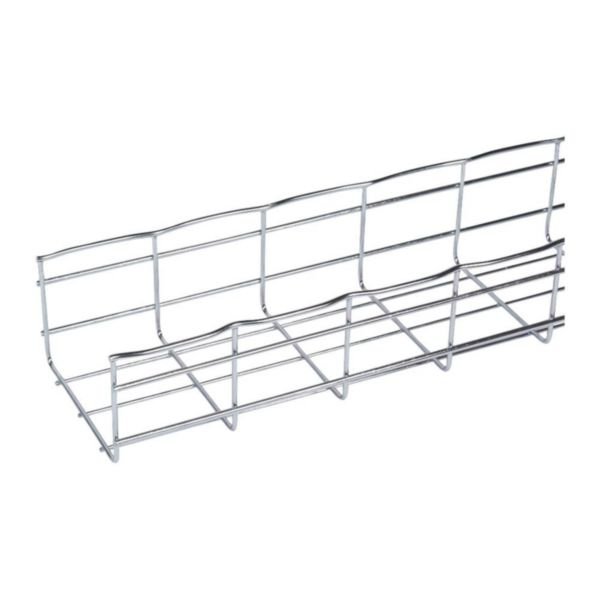

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 150mm x 105mm | @Each of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. Featuring a robust U-shape profile and an electro-zinc plated surface for corrosion resistance, it ensures safe and organized cable routing. Ideal for data centers and manufacturing facilities, this tray supports electrical wiring while enhancing energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 150mm x 105mm | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000901
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Wire Mesh Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 150 mm
- Height: 105 mm
- Length: 3000 mm
- Usable cross section: 15750 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: 1.88 kg per meter
- Dimensions (H x L x W): 105mm x 3000mm x 150mm
- Weight: 5.65 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Electro-zinc plated surface for corrosion resistance
- U-shape profile for robust cable support
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with electrical and building codes and to maintain cable integrity.
Applications
- Cable management in commercial and industrial buildings
- Electrical wiring support in data centers and server rooms
- Organizing and protecting cables in manufacturing facilities
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro-zinc plating extends product life reducing replacement frequency
- Supports organized cable routing which can improve energy efficiency in electrical systems
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 150mm x 105mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
