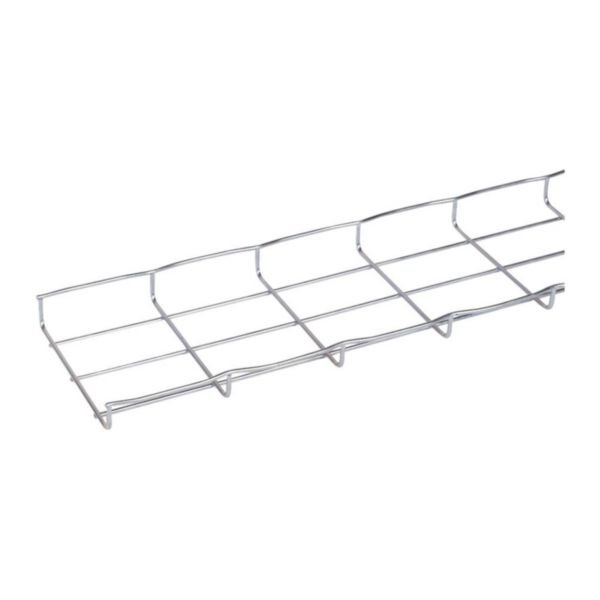

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 150mm Width | @Each of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. Featuring a robust U-shape profile and an electro-zinc plated surface for corrosion resistance, it supports and routes electrical cables effectively. Ideal for both indoor and outdoor use, this tray ensures safety and compliance with building codes, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 150mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000031
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Wire Mesh Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 150 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 3978 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature: -20°C to 120°C
- Weight: 0.683 kg/m
- Dimensions (H x L x W): 30mm x 3000mm x 150mm
- Weight: 2.05 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Electro-zinc plated surface for corrosion resistance
- U-shape profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified electrical or construction personnel is recommended to ensure compliance with safety and building codes.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in buildings and infrastructure
- Suitable for indoor and outdoor use in electrical wiring systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro-zinc plating extends product life reducing replacement frequency and waste
- Supports organized cable routing which can improve energy efficiency and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 150mm x 30mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
