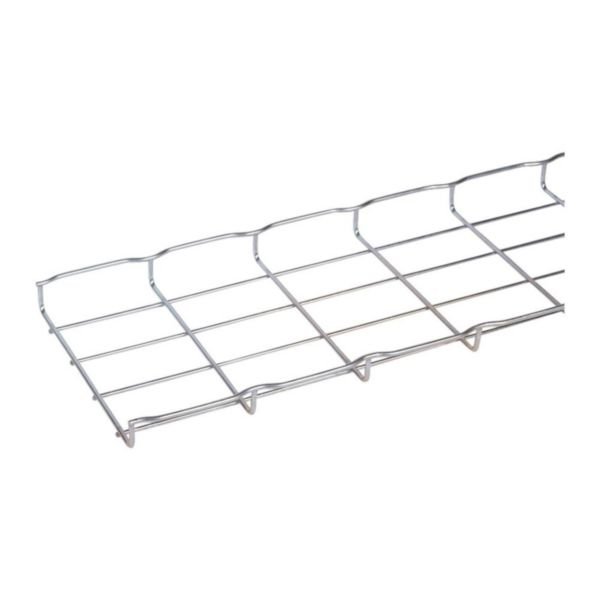

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 200mm Width | @Each of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. Featuring a robust U-shape profile and an electro-zinc plated surface for corrosion resistance, it ensures safe and effective routing of electrical cables. Ideal for data centers and factories, this tray supports optimal cable ventilation and complies with AS/NZS 1170 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 200mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000041
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Cable Management Tray, Wire Mesh Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 200 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 5293 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: 0.947 kg per meter
- Dimensions (H x L x W): 30mm x 3000mm x 200mm
- Weight: 2.84 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Electro-zinc plated surface for corrosion resistance
- U-shape profile for robust cable support
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems to ensure compliance with safety and structural standards.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro-zinc plating extends product life reducing replacement frequency and waste
- Steel material is recyclable contributing to sustainable resource use
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 200mm x 30mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
