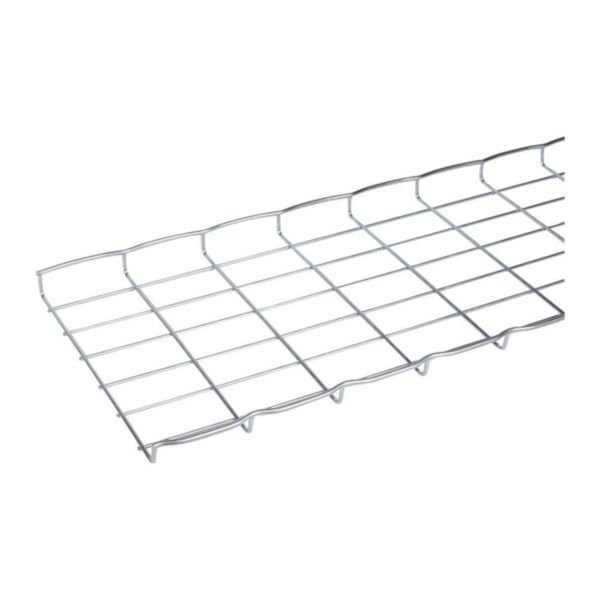

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 300mm Width | @Each of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. With a robust U-shape profile and electrolytic zinc plating, it offers superior corrosion resistance and natural ventilation for optimal cable performance. Ideal for data centers and factories, this tray supports a wide range of electrical cables while ensuring compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 300mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000051
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Wire Mesh Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 300 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 7953 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Weight: 1.464 kg/m
- Dimensions (H x L x W): 30mm x 3000mm x 300mm
- Weight: 4.39 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Electrolytic zinc plated surface for corrosion resistance
- U-shape profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with electrical and building standards and to maintain cable integrity and safety.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro zinc plating extends product life reducing replacement frequency and waste
- Steel material is recyclable contributing to sustainable resource use
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 300mm x 30mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
