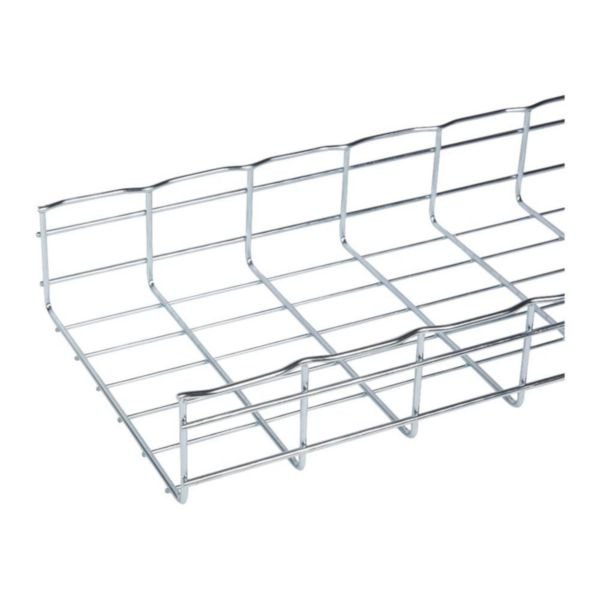

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 300mm Width | @Each of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. With a robust U-shape profile and electro-zinc plated surface, it offers superior corrosion resistance and safety for cables. Ideal for data centers and factories, this tray supports optimal cable routing and ventilation, ensuring durability and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 300mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000921
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Wire Mesh Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 300 mm
- Height: 105 mm
- Length: 3000 mm
- Usable cross section: 31500 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: 3.05 kg per meter
- Dimensions (H x L x W): 105mm x 3000mm x 300mm
- Weight: 9.16 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Electro-zinc plated surface for corrosion resistance
- U-shape profile for robust cable support
- Steel construction for strength and durability
Professional Installation Requirements
- Professional installation by qualified electricians or cable management specialists is recommended to ensure compliance with electrical standards and safety.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for indoor and outdoor use where corrosion resistance is required
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro-zinc plating extends product life reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; typically 1-3 years depending on supplier terms.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 300mm x 105mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
