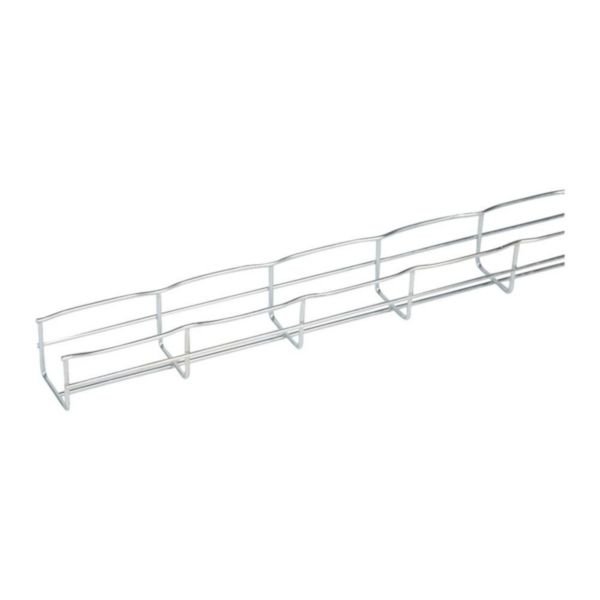

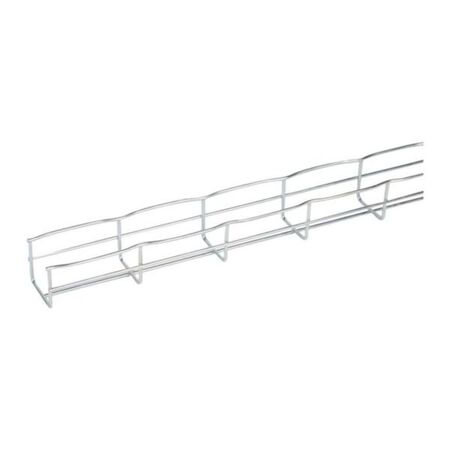

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 3m Length | @Each of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. Featuring a robust U-shape profile and an electro-zinc plated surface for corrosion resistance, it ensures reliable support and routing of electrical cables. Ideal for environments requiring circuit integrity, this tray promotes natural ventilation to enhance cable lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 3m Length | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000061
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Wire Mesh Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 50 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 2558 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: Approximately 0.63 kg per meter
- Dimensions (H x L x W): 54mm x 3000mm x 50mm
- Weight: 1.9 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Electro-zinc plated surface for corrosion resistance
- U-shape profile for robust cable support
- Suitable for circuit integrity applications
Professional Installation Requirements
- Professional installation by qualified electrical or cabling technicians is recommended to ensure compliance with safety and structural standards.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for environments requiring circuit integrity
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro-zinc plating extends product life reducing replacement frequency and waste
- Ventilated design improves cable lifespan by preventing overheating
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 50mm x 54mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
