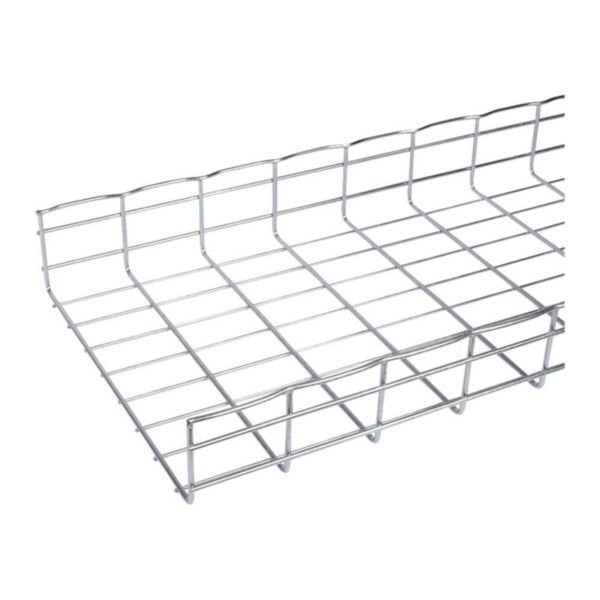

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 3m Length | @Each of 1 | by Cablofil
Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. Featuring a robust U-shape profile and electro zinc plating for corrosion resistance, this tray supports and routes electrical cables effectively. Ideal for both indoor and outdoor use, it ensures compliance with electrical codes while enhancing cable efficiency and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 3m Length | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000931
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Wire Mesh Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 400 mm
- Height: 105 mm
- Length: 3000 mm
- Usable cross section: 42000 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: 3.48 kg/m
- Dimensions (H x L x W): 105mm x 3000mm x 400mm
- Weight: 10.43 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Electro zinc plated surface for corrosion resistance
- U-shape profile for robust cable support
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with electrical and building codes and to maintain cable integrity and safety.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for indoor and outdoor use where corrosion resistance is required
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro zinc plating extends product life reducing replacement frequency and waste
- Supports organized cable routing which can improve energy efficiency and reduce heat buildup
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 400mm x 105mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
