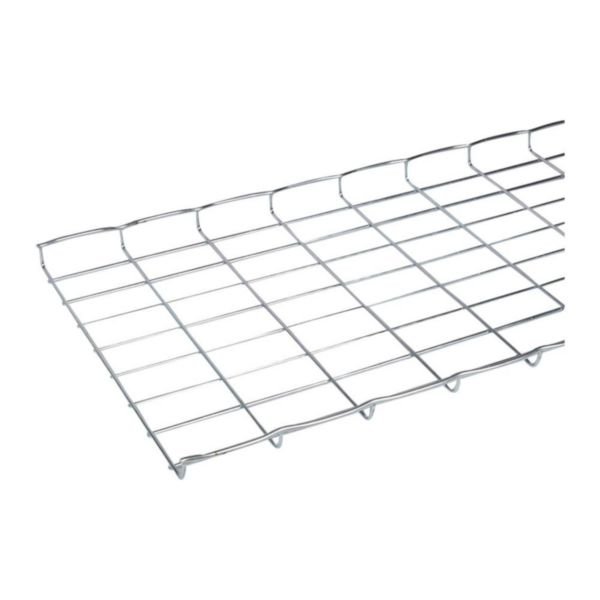

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 400mm Width | @Len of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. Featuring a robust U-shape profile and an electro zinc plated surface for corrosion resistance, it ensures optimal cable support and natural ventilation. Ideal for data centers and manufacturing facilities, this tray enhances cable lifespan while complying with AS/NZS 1170 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 400mm Width | @Len of 1 | by Cablofil
Brand: Cablofil
SKU: CM000801
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Cable Management Tray, Wire Mesh Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 400 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 10613 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature range: -20°C to 120°C
- Weight: 2.28 kg per meter
- Dimensions (H x L x W): 30mm x 3000mm x 400mm
- Weight: 6.85 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Electro zinc plated surface for corrosion resistance
- U-shape profile for robust cable support
- Suitable for operating temperatures from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building codes.
Applications
- Cable management in commercial and industrial buildings
- Electrical wiring support in data centers and server rooms
- Organizing and protecting cables in manufacturing facilities
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro zinc plating extends product life reducing replacement frequency
- Ventilated design improves cable lifespan by preventing overheating
Warranty Information
Standard manufacturer warranty applies; typically 1-3 years depending on purchase terms.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 400mm x 30mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
