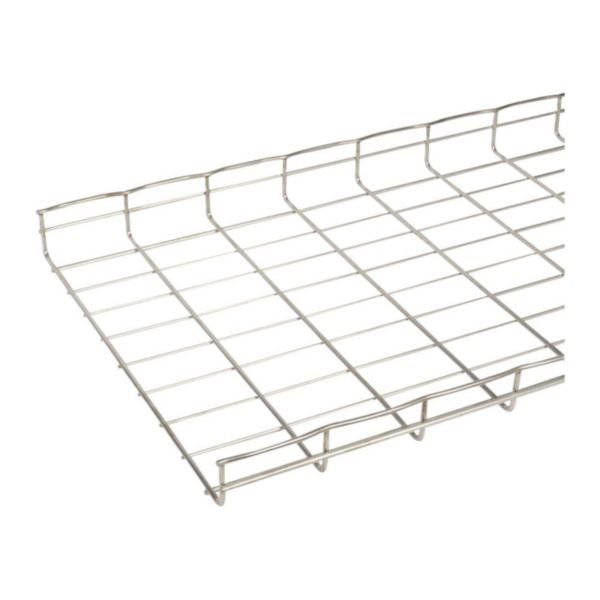

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 450mm Width | @Each of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. Featuring a robust U-shape profile and an electro zinc plated surface for corrosion resistance, it ensures safe and organized routing of electrical cables. Ideal for data centers and factories, this tray supports both indoor and outdoor applications, enhancing energy efficiency and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 450mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000251
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Cable Management Tray, Wire Mesh Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 450 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 22968 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: Approximately 3.27 kg per meter
- Dimensions (H x L x W): 54mm x 3000mm x 450mm
- Weight: 9.8 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Electro zinc plated surface for corrosion resistance
- U-shape profile for robust cable support
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems to ensure compliance with safety and structural standards.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for indoor and outdoor use in electrical wiring systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro zinc plating extends product life reducing replacement frequency and waste
- Supports organized cable routing which can improve energy efficiency in electrical systems
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 450mm x 54mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
