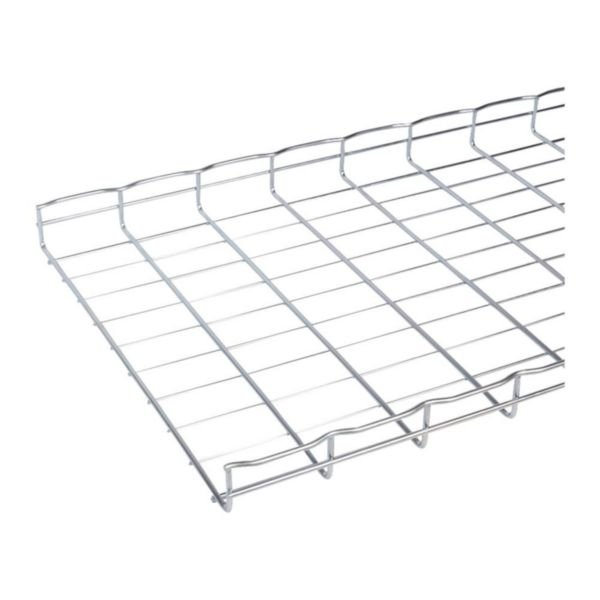

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 500mm Width | @Each of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. With a robust U-shape profile and electrolytic zinc plating for corrosion resistance, it supports and routes electrical cables effectively. Ideal for data centers and factories, this tray ensures safety and compliance with electrical codes while enhancing energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 500mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000301
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Cable Management Tray, Wire Mesh Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 500 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 25523 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Weight: 3.4768 kg/m
- Dimensions (H x L x W): 54mm x 3000mm x 500mm
- Weight: 10.43 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Electrolytic zinc plated surface for corrosion resistance
- U-shape profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building codes.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro zinc plating extends product life reducing replacement frequency and waste
- Supports organized cable routing which can improve energy efficiency and reduce heat buildup
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 500mm x 54mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
