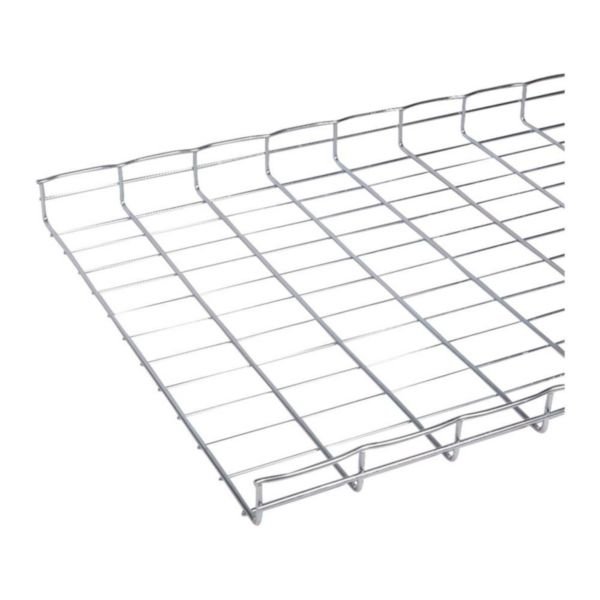

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 600mm Width | @Each of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. With a robust U-shape profile and electro zinc plating for corrosion resistance, it supports cables effectively while enhancing ventilation to prevent overheating. Ideal for both indoor and outdoor use, this tray ensures compliance with electrical standards and is perfect for data centers and factories.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 600mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000401
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Cable Management Tray, Wire Mesh Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 600 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 30633 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature: -20°C to 120°C
- Weight: Approximately 3.9 kg per meter
- Dimensions (H x L x W): 54mm x 3000mm x 600mm
- Weight: 11.7 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation design enhances cable efficiency
- Electro zinc plated surface for corrosion resistance
- U-shape profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building codes.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for indoor and outdoor use where corrosion resistance is required
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro zinc plating extends product life reducing replacement frequency and waste
- Ventilated design improves cable lifespan by preventing overheating
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 600mm x 54mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
