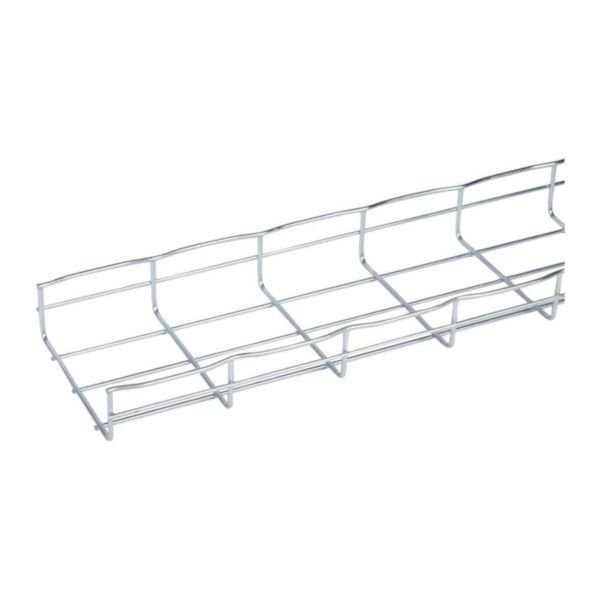

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | Natural Ventilation | @Each of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. Featuring a robust U-shape profile and electrolytic zinc plating for corrosion resistance, it ensures optimal cable support and natural ventilation. Ideal for data centers and factories, this tray supports circuit integrity applications while enhancing cable efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | Natural Ventilation | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000081
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Cable Management Tray, Wire Mesh Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 150 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 7713 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Weight: 1.04277804 kg/m
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Model: Without connector
- Integrated partition: None
- Suitable for circuit integrity: Yes
- Dimensions (H x L x W): 54mm x 3000mm x 150mm
- Weight: 3.13 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- U-shape profile for robust cable support
- Electrolytic zinc plated surface for corrosion resistance
- Suitable for circuit integrity applications
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper support, secure fixing, and compliance with electrical and building codes.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for environments requiring circuit integrity and natural ventilation
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro zinc plating extends product lifespan reducing replacement frequency
- Natural ventilation design improves cable efficiency and reduces overheating risks
Warranty Information
Warranty details available upon request from the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 150mm x 54mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
