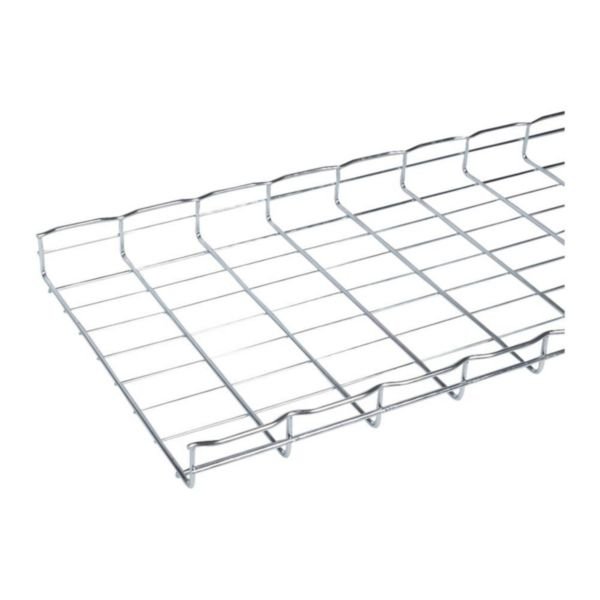

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Galvanic Zinc Plated | 400mm Width | @Each of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. Featuring a robust U-shape profile and galvanic zinc plating for corrosion resistance, it ensures safe and effective routing of electrical cables. Ideal for data centers and factories, this tray supports circuit integrity applications while promoting natural ventilation for enhanced cable lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Galvanic Zinc Plated | 400mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000201
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Wire Mesh Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 400 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 20413 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: 3.05 kg/m
- Model: Without connector
- Integrated partition: None
- Suitable for circuit integrity: Yes
- Dimensions (H x L x W): 54mm x 3000mm x 400mm
- Weight: 9.16 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- U-shape profile for robust cable support
- Galvanic/electrolytic zinc plated surface protection for corrosion resistance
- Suitable for circuit integrity applications
Professional Installation Requirements
- Installation should be performed by qualified electrical professionals to ensure compliance with electrical safety standards and proper cable management.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for environments requiring circuit integrity
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro zinc plating extends product life reducing replacement frequency and waste
- Natural ventilation design improves cable lifespan and energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 400mm x 54mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
