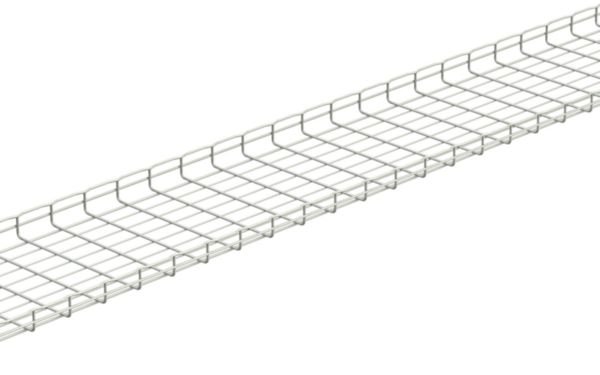

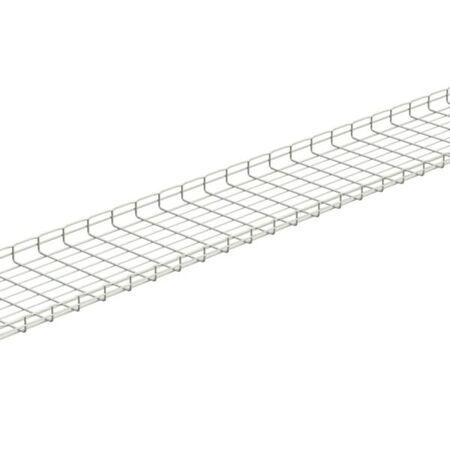

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Design | Galvanic Zinc Plated | Natural Ventilation | @Each of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. Featuring a U-shape design and galvanic zinc plating for corrosion resistance, it ensures safe and organized electrical wiring support. Ideal for data centers and manufacturing facilities, this tray promotes natural ventilation to enhance cable lifespan and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Design | Galvanic Zinc Plated | Natural Ventilation | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000101
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Wire Mesh Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 300 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 15453 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: 2.04 kg/m
- Model: Without connector
- Integrated partition: None
- Suitable for circuit integrity: Yes
- Dimensions (H x L x W): 54mm x 3000mm x 300mm
- Weight: 6.13 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Suitable for circuit integrity
- Galvanic/electrolytic zinc plated surface for corrosion resistance
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper support and secure cable management in compliance with safety standards.
Applications
- Cable management in commercial and industrial buildings
- Electrical wiring support in data centers and server rooms
- Organizing and protecting cables in manufacturing facilities
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro zinc plating extends product life reducing replacement frequency and waste
- Ventilated design improves cable lifespan by preventing overheating
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 300mm x 54mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
