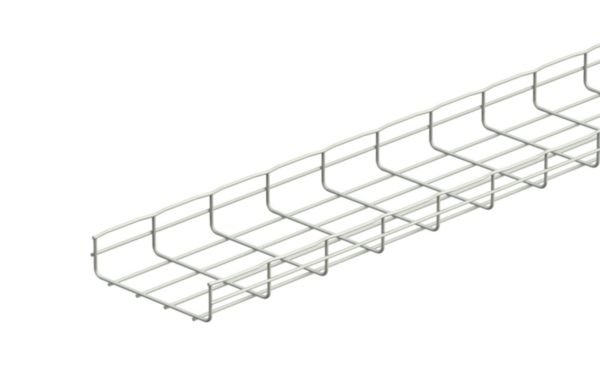

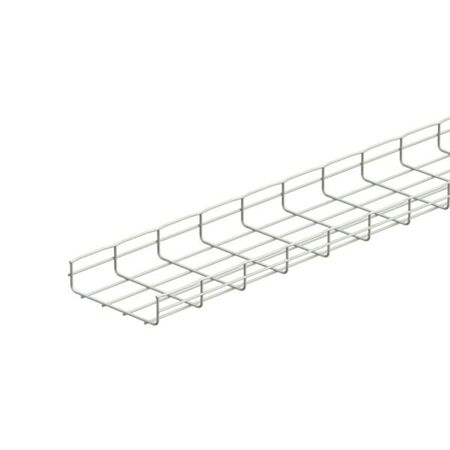

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Galvanic Zinc Plated | 100mm x 54mm | @Each of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. Featuring a robust U-shape profile and galvanic zinc plating for corrosion resistance, it ensures reliable support and routing of electrical cables. Ideal for environments requiring circuit integrity, this tray promotes natural ventilation for enhanced cable efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Galvanic Zinc Plated | 100mm x 54mm | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000071
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Cable Management Tray, Wire Mesh Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 100 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 5143 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: 0.7785748 kg/m
- Model: Without connector
- Integrated partition: None
- Suitable for circuit integrity: Yes
- Dimensions (H x L x W): 54mm x 3000mm x 100mm
- Weight: 2.34 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- U-shape profile for robust cable support
- Galvanic/electrolytic zinc plated surface for corrosion resistance
- Suitable for circuit integrity applications
Professional Installation Requirements
- Professional installation by qualified electricians is recommended to ensure compliance with electrical standards and safety.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for environments requiring circuit integrity
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro zinc plating extends product life reducing replacement frequency and waste
- Natural ventilation design improves cable efficiency, reducing energy losses
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 100mm x 54mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
