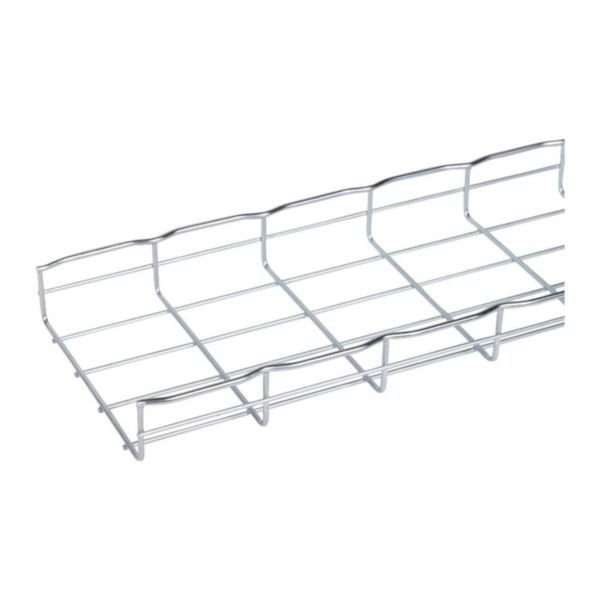

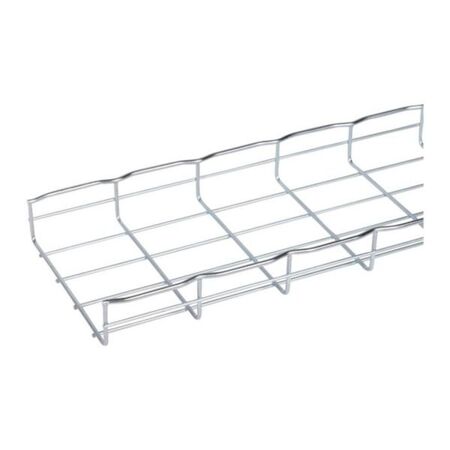

Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Galvanic Zinc Plated | 200mm Width | @Each of 1 | by Cablofil
The Cablofil Electro Zinc Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. Featuring a robust U-shape profile and galvanic zinc plating for corrosion resistance, it supports and routes electrical cables while ensuring circuit integrity. Ideal for data centers and factories, this tray promotes natural ventilation for improved cable lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Electro Zinc Steel Wire Cable Tray | U-Shape Profile | Galvanic Zinc Plated | 200mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000091
Alternatively Known As: Steel Wire Cable Tray, Electro Zinc Cable Tray, Cable Management Tray, Wire Mesh Cable Tray
Technical Specifications
- Profile shape: U-shape
- Width: 200 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 10293 mm²
- Material: Steel
- Surface protection: Galvanic/electrolytic zinc plated
- Weight: 1.34 kg/m (approx. 4.02 kg for 3m length)
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Integrated partition: None
- Model: Without connector
- Suitable for circuit integrity: Yes
- Dimensions (H x L x W): 54mm x 3000mm x 200mm
- Weight: 4.02 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- U-shape profile for robust cable support
- Galvanic/electrolytic zinc plated surface protection for corrosion resistance
- Suitable for circuit integrity applications
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with electrical and building standards and to maintain circuit integrity.
Applications
- Cable management in commercial and industrial electrical installations
- Support and routing of electrical cables in data centers, factories, and buildings
- Suitable for environments requiring circuit integrity
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Electro zinc plating provides long-lasting corrosion resistance, reducing the need for frequent replacements and waste
- Open wire mesh design allows natural ventilation, improving cable lifespan and reducing energy loss
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Electro Zinc Steel Wire Cable Tray 200mm x 54mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
