Cablofil Hot Dip Galvanised Steel Cable Tray Ceiling Support Bracket | 1800 N Load Capacity | Corrosion Resistant | @Each of 1 | by Cablofil

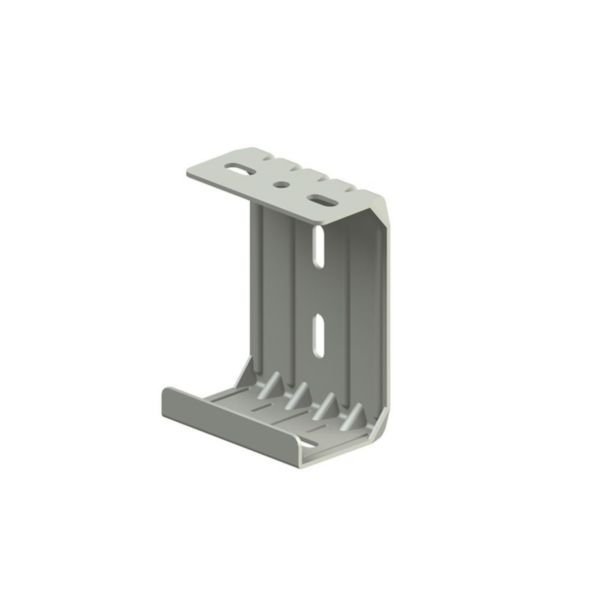

The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Ceiling Support Bracket is designed for reliable support in ceiling installations, accommodating tray widths from 50 to 300 mm. With a robust load-bearing capacity of 1800 N and a corrosion-resistant hot-dip galvanised finish, it's perfect for commercial and industrial cable management applications, ensuring safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Steel with hot-dip galvanised surface protection
- Suitable tray widths: 50 to 300 mm
- Load bearing capacity: 1800 N
- Diameter: 9 mm
- Non-adjustable, no hinging
- Not suitable for circuit integrity applications
- Dimensions (H x L x W): 135mm x 65.5mm x 100mm
- Weight: 0.5 kg
Key Features
- Hot-dip galvanised steel for corrosion resistance
- Designed for use with 50 to 300 mm tray widths
- Load bearing capacity of 1800 N
- Steel material with zinc surface protection
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable tray systems and structural support requirements to ensure safety and compliance.
Applications
- Supports cable trays in ceiling installations
- Suitable for cable management in commercial and industrial buildings
- Used in electrical wiring and cable routing systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life, reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Ceiling Support Bracket is available for immediate purchase, ideal for commercial and industrial cable management applications.
