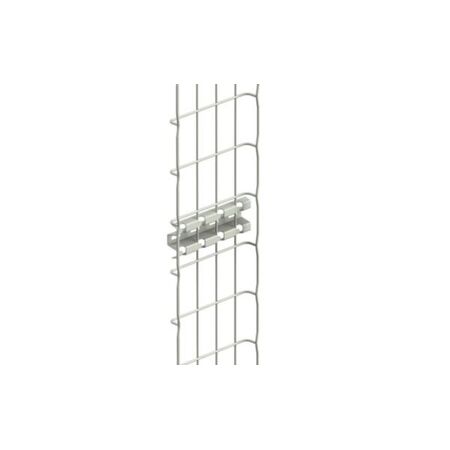

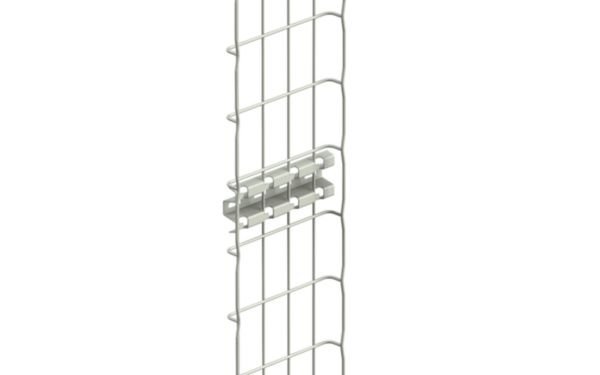

Cablofil Hot Dip Galvanised Steel Cable Tray Support Rail | Corrosion Resistant | S-Profile Design | 1 kN Load Capacity | @Each of 1 | by Cablofil
The Cablofil Hot Dip Galvanised Steel Cable Tray Support Rail is designed for robust cable management, featuring a corrosion-resistant hot-dip galvanised finish and an S-profile shape for enhanced structural support. With a load-bearing capacity of 1 kN, it's perfect for various mounting applications, including floor, wall, and trapeze installations, making it ideal for industrial and commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Cable Tray Support Rail | Corrosion Resistant | S-Profile Design | 1 kN Load Capacity | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM013203
Alternatively Known As: Cable Tray Support Rail, Galvanised Cable Tray Support, Steel Cable Tray Rail, Cable Tray Mounting Rail
Technical Specifications
- Length: 194 mm
- Width: 68 mm
- Height: 25 mm
- Slit width: 25 mm
- Material thickness: 1.5 mm
- Profile shape: S-profile
- Model: Singular profile
- Type of perforation: Back perforated
- Hole width: 8.5 mm
- With toothing: No
- Snap-off: No
- Load bearing capacity: 1 kN
- Suitable for circuit integrity: No
- Material: Steel
- Material quality: Other
- Surface protection: Hot-dip galvanised
- Operating / setting temperature: -20 to 120 °C
- Storage temperature: -20 to 120 °C
- Halogen free: Yes
- Dimensions (H x L x W): 25mm x 194mm x 68mm
- Weight: 0.5 kg
Key Features
- Hot-dip galvanised steel for corrosion resistance
- S-profile shape for structural support
- Back perforated with 8.5 mm hole width
- Load bearing capacity of 1 kN
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable tray systems and structural mounting to ensure safety and compliance with local regulations.
Applications
- Floor mounting for cable trays
- Wall mounting for cable trays
- Trapeze mounting for cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency and waste
- Halogen free material reduces environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific terms.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Support Rail 200mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
