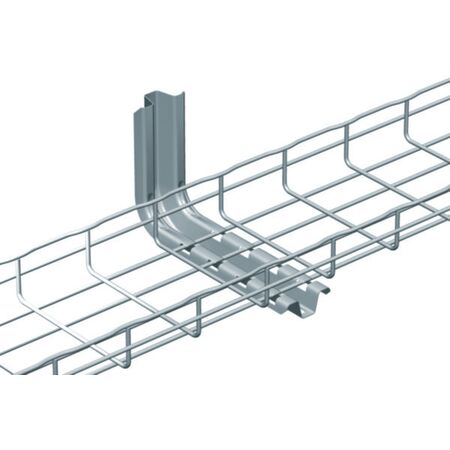

Cablofil Hot Dip Galvanised Steel Wire Cable Tray Cantilever Arm | Corrosion Resistant | Supports 100-300mm Widths | @Each of 1 | by Cablofil
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Profile Cantilever Arm is designed for robust cable support systems in industrial and commercial settings. With a corrosion-resistant hot-dip galvanised finish and a safe working load of 730 N, it accommodates cable trays from 100mm to 300mm wide. Ideal for wall mounting, this arm ensures secure installation and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray Cantilever Arm | Corrosion Resistant | Supports 100-300mm Widths | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556133
Alternatively Known As: Cable Tray Wall Bracket, Cantilever Arm for Cable Tray, Hot Dip Galvanised Cable Tray Support
Technical Specifications
- Material: Steel with hot-dip galvanised surface protection
- Length: 378 mm
- Width: 67 mm
- Height: 170 mm
- Suitable for cable support system width: 100-300 mm
- Angle: 90-90°
- Safe working load: 730 N (IEC 61537)
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Suitable for circuit integrity: Yes
- Dimensions (H x L x W): 170mm x 378mm x 67mm
- Weight: 1.5 kg
Key Features
- Hot-dip galvanised steel construction for corrosion resistance
- Slot and tab design for easy fixing and installation
- Supports cable trays with widths from 100mm to 300mm
- Safe working load of 730 N according to IEC 61537
- Suitable for circuit integrity applications
- Halogen free material
- Operating and storage temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and structural standards.
Applications
- Cable support systems in industrial and commercial electrical installations
- Wall mounting for cable trays in electrical wiring management
- Suitable for cable tray widths from 100mm to 300mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency and waste
- Halogen free materials reduce environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Profile Cantilever Arm 300mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
