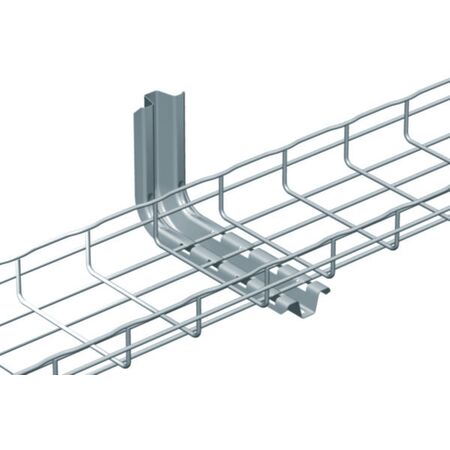

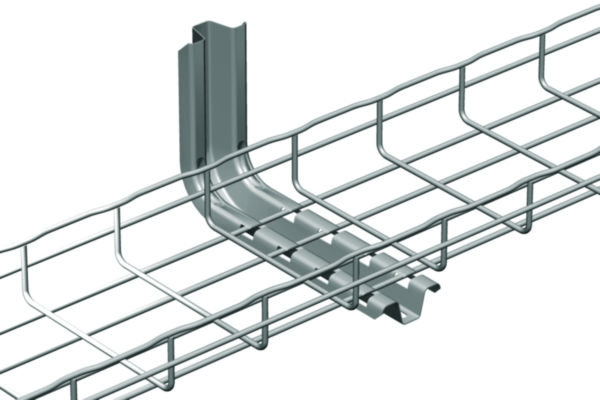

Cablofil Hot Dip Galvanised Steel Wire Cable Tray Cantilever Arm | 1100 N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Cantilever Arm is designed for robust cable management in industrial and commercial settings. With a safe working load of 1100 N and a halogen-free construction, it ensures reliable support for cable trays ranging from 100 to 150 mm in width. Ideal for professional installations, this arm features a corrosion-resistant finish and is suitable for circuit integrity applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray Cantilever Arm | 1100 N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556113
Alternatively Known As: Cable Tray Cantilever Arm, Wall Bracket for Cable Tray, Galvanised Cable Tray Support Arm
Technical Specifications
- Length: 228 mm
- Width: 32 mm
- Height: 170 mm
- Suitable for cable support system width: 100-150 mm
- Angle: 90-90°
- Safe working load: 1100 N (IEC 61537)
- Material: Steel
- Surface protection: Hot-dip galvanised
- Operating temperature: -20 to 120 °C
- Storage temperature: -20 to 120 °C
- Halogen free: Yes
- Suitable for circuit integrity: Yes
- Dimensions (H x L x W): 170mm x 228mm x 32mm
- Weight: 1.5 kg
Key Features
- Hot-dip galvanised steel construction for enhanced corrosion resistance
- Slot and tab design for easy fixing and installation
- Safe working load of 1100 N according to IEC 61537
- Suitable for circuit integrity applications
- Halogen free material
- Operating and storage temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and structural standards.
Applications
- Supports cable management systems in industrial and commercial electrical installations
- Wall mounting for cable trays in electrical wiring setups
- Suitable for cable support systems with widths from 100 to 150 mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life, reducing replacement frequency and waste
- Halogen free materials contribute to safer environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Profile Cantilever Arm 150mm is available for immediate purchase, ideal for industrial and commercial cable management support applications.
