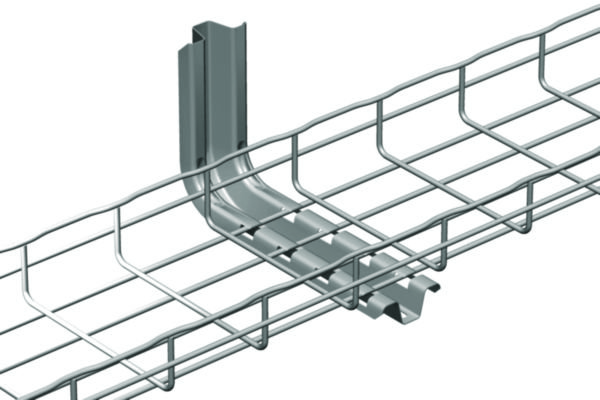

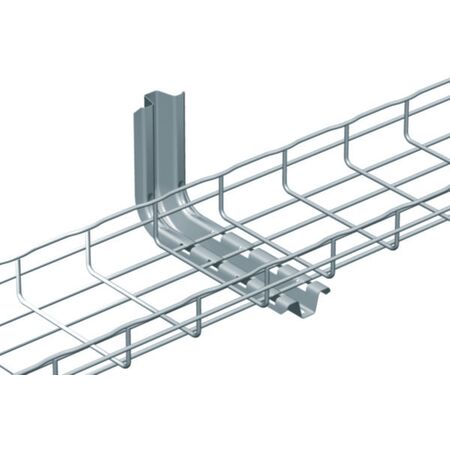

Cablofil Hot Dip Galvanised Steel Wire Cable Tray Cantilever Arm | 1300 N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Cantilever Arm is designed for robust cable management in industrial and commercial settings. With a safe working load of 1300 N and a halogen-free construction, it ensures reliable support for cable trays up to 100 mm wide. Ideal for harsh environments, this arm features a corrosion-resistant finish and a user-friendly slot and tab design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray Cantilever Arm | 1300 N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556103
Alternatively Known As: Cable Tray Cantilever Arm, Cable Tray Wall Bracket, Galvanised Cable Tray Support Arm
Technical Specifications
- Material: Steel with hot-dip galvanised surface protection
- Length: 178 mm
- Width: 32 mm
- Height: 170 mm
- Suitable for cable support system width: 100 mm
- Angle: 90°
- Safe working load: 1300 N (IEC 61537)
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Dimensions (H x L x W): 170mm x 178mm x 32mm
- Weight: 1.5 kg
Key Features
- Hot-dip galvanised steel construction for enhanced corrosion resistance
- Slot and tab design for easy fixing and installation
- Safe working load of 1300 N according to IEC 61537
- Suitable for cable support system width of 100 mm
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with safety standards.
Applications
- Cable management and support in industrial and commercial electrical installations
- Wall mounting for cable trays in electrical wiring systems
- Suitable for use in harsh environments requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life, reducing replacement frequency and waste
- Halogen free materials contribute to safer disposal and reduced environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Profile Cantilever Arm 100mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
