Cablofil Hot Dip Galvanised Steel Wire Cable Tray Cantilever Arm | Corrosion Resistant | 850 N Safe Working Load | @EA of 1 | by Cablofil

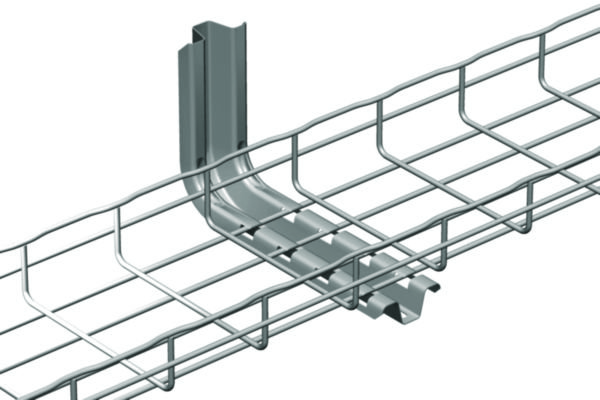

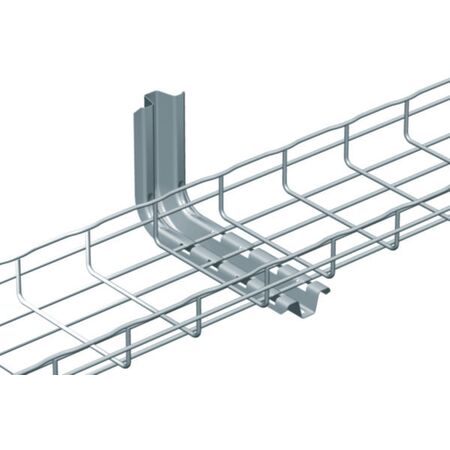

The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Profile Cantilever Arm is designed for robust cable management in industrial and commercial settings. With a corrosion-resistant hot-dip galvanised finish and a safe working load of 850 N, it supports cable trays from 100mm to 200mm wide. Ideal for wall mounting, this arm ensures secure installation and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray Cantilever Arm | Corrosion Resistant | 850 N Safe Working Load | @EA of 1 | by Cablofil
Brand: Cablofil
SKU: CM556123
Alternatively Known As: Cable Tray Wall Bracket, Cantilever Arm for Cable Tray, Galvanised Cable Tray Support Arm
Technical Specifications
- Material: Steel with hot-dip galvanised surface protection
- Length: 278 mm
- Width: 32 mm
- Height: 170 mm
- Suitable for cable support system width: 100-200 mm
- Angle: 90-90°
- Safe working load: 850 N (IEC 61537)
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Halogen free: Yes
- Suitable for circuit integrity: Yes
- Dimensions (H x L x W): 170mm x 278mm x 32mm
- Weight: 1.5 kg
Key Features
- Hot-dip galvanised steel construction for enhanced corrosion resistance
- Slot and tab design for easy fixing and installation
- Supports cable tray widths from 100mm to 200mm
- Safe working load of 850 N according to IEC 61537
- Suitable for circuit integrity applications
- Halogen free material
- Operating and storage temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems to ensure compliance with safety standards and secure mounting.
Applications
- Cable management and support in industrial and commercial electrical installations
- Suitable for use in cable tray systems requiring wall mounting support
- Ideal for supporting cable trays with widths from 100mm to 200mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life, reducing replacement frequency and waste
- Halogen free materials contribute to safer environmental impact in case of fire
Warranty Information
Warranty details available upon request from manufacturer or supplier.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Profile Cantilever Arm 200mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
