Cablofil Hot Dip Galvanised Steel Wire Cable Tray Central Hanger Bracket | 50mm Width | 120N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil

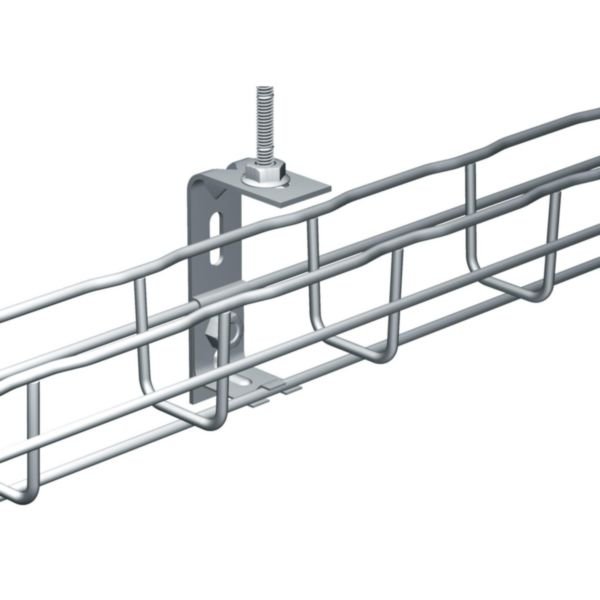

The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Central Hanger Bracket is designed for 50 mm wide cable trays, providing a safe working load of 120 N. Ideal for industrial and commercial cable management systems, this bracket features a corrosion-resistant hot-dip galvanised finish and halogen-free materials, ensuring durability and safety in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray Central Hanger Bracket | 50mm Width | 120N Safe Working Load | Halogen Free | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM557303
Alternatively Known As: Cable Tray Central Hanger Bracket, Hot Dip Galvanised Cable Tray Support, Steel Wire Cable Tray Bracket
Technical Specifications
- Material: Steel
- Surface Protection: Hot-dip galvanised
- Suitable Cable Tray Width: 50 mm
- Safe Working Load: 120 N (per IEC 61537)
- Operating Temperature: -20°C to 120°C
- Angle: 90°
- Halogen Free: Yes
- Dimensions (H x L x W): 58mm x 110mm x 30mm
- Weight: 0.2 kg
Key Features
- Hot-dip galvanised steel construction for corrosion resistance
- Designed for 50 mm wide cable trays
- Safe working load of 120 N according to IEC 61537
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable management systems to ensure secure and compliant mounting.
Applications
- Supports cable trays with 50 mm width in electrical installations
- Used in industrial, commercial, and infrastructure cable management systems
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency and waste
- Halogen free materials reduce environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Central Hanger Bracket is available for immediate purchase, ideal for industrial and commercial cable tray support applications.
