Cablofil Hot Dip Galvanised Steel Wire Cable Tray Roof Cantilever Arm | 1200 N Load Capacity | Screwable Tray Mounting | @EA of 1 | by Cablofil

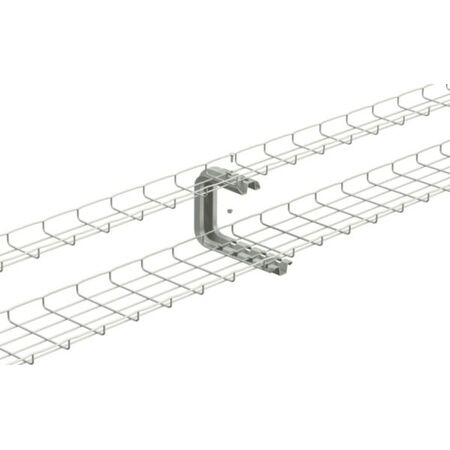

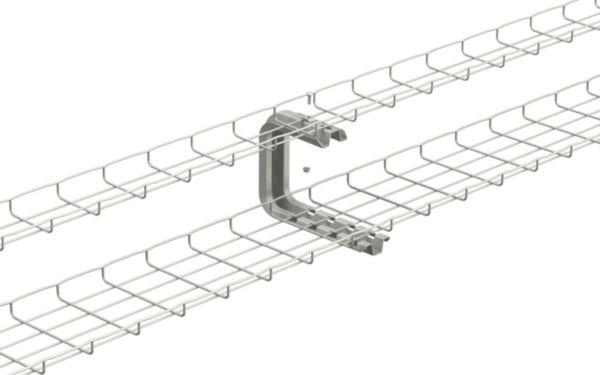

The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Roof Cantilever Arm is designed for robust cable management in industrial and commercial settings. With a load-bearing capacity of 1200 N and a screwable tray mounting for secure installation, this arm is perfect for supporting wire mesh trays at a height of 100 mm. Its hot-dip galvanised steel construction ensures superior corrosion resistance, making it a reliable choice for long-term use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray Roof Cantilever Arm | 1200 N Load Capacity | Screwable Tray Mounting | @EA of 1 | by Cablofil
Brand: Cablofil
SKU: CM556303
Alternatively Known As: Cable Tray Support Arm, Roof Cantilever Arm, Cable Tray Bracket, Wire Mesh Tray Support
Technical Specifications
- Material: Steel
- Surface Protection: Hot-dip galvanised
- Load Bearing Capacity: 1200 N
- Suitable for Cable Support System Height: 100 mm
- Tray Mounting: Screwable
- Suitable for Wire Mesh Tray: Yes
- Suitable for Cable Ladder: No
- Suitable for Cable Tray: No
- Suitable for Circuit Integrity: No
- Dimensions (H x L x W): 100mm x 300mm x 100mm
- Weight: 1.5 kg
Key Features
- Hot-dip galvanised steel construction for superior corrosion resistance
- Slot and tab design for easy fixing and installation
- Screwable tray mounting for secure attachment
- Load bearing capacity of 1200 N
- Suitable for cable support system height of 100 mm
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with structural and electrical safety standards.
Applications
- Supports for cable wire mesh trays in industrial and commercial electrical installations
- Roof and ceiling mounting for cable management systems
- Wall mounting for cable support in electrical wiring setups
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life, reducing replacement frequency and waste
- Steel material is recyclable, supporting sustainable construction practices
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Profile Roof Cantilever Arm 100mm is available for immediate purchase, ideal for industrial and commercial cable management support applications.
