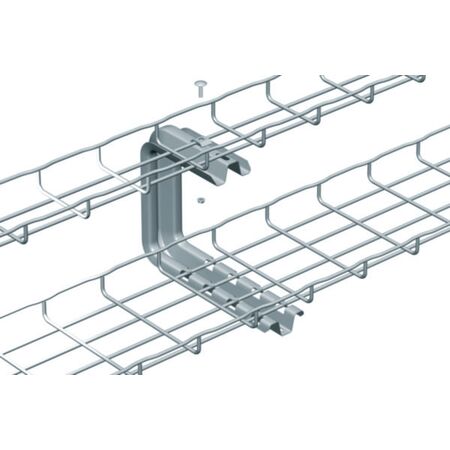

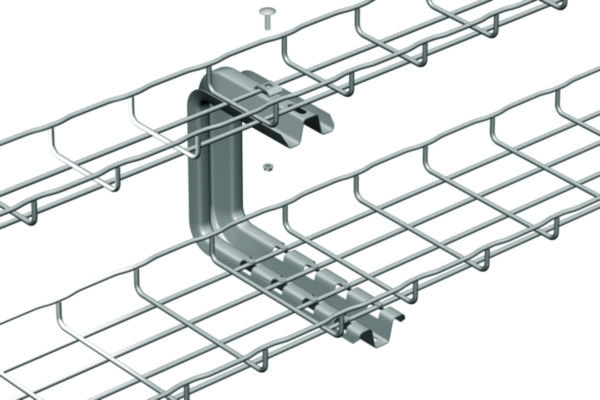

Cablofil Hot Dip Galvanised Steel Wire Cable Tray Roof Cantilever Arm | 700 N Load Capacity | Screwable Mounting | @Each of 1 | by Cablofil
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Roof Cantilever Arm is designed for robust cable support in industrial and commercial settings. With a load-bearing capacity of 700 N and a screwable mounting system, it ensures secure installation for wire mesh trays. Ideal for ceiling and wall mounting, this arm is built to withstand the demands of electrical wiring infrastructure while providing long-lasting durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray Roof Cantilever Arm | 700 N Load Capacity | Screwable Mounting | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM556333
Alternatively Known As: Cable Tray Support Arm, Roof Cantilever Arm, Wire Mesh Cable Tray Bracket, Galvanised Cable Tray Support
Technical Specifications
- Material: Steel with hot-dip galvanised surface protection
- Load Bearing Capacity: 700 N
- Suitable Cable Support System Height: 100 mm
- Tray Mounting: Screwable
- Compatible with Wire Mesh Trays: Yes
- Not suitable for Cable Ladder or Cable Tray
- Dimensions (H x L x W): 100mm x 300mm x 300mm
- Weight: 1.2 kg
Key Features
- Hot-dip galvanised steel construction for corrosion resistance
- Slot and tab design for easy fixing and installation
- Screwable tray mounting for secure attachment
- Load bearing capacity of 700 N
- Compatible with cable support system heights of 100-100 mm
- Suitable for wire mesh trays
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable management systems to ensure secure mounting and compliance with safety standards.
Applications
- Supports cable wire mesh trays in industrial and commercial electrical installations
- Suitable for ceiling and wall mounting in cable management systems
- Used in electrical wiring infrastructure requiring durable cable support
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Profile Roof Cantilever Arm 300mm is available for immediate purchase, ideal for industrial and commercial cable support applications.
