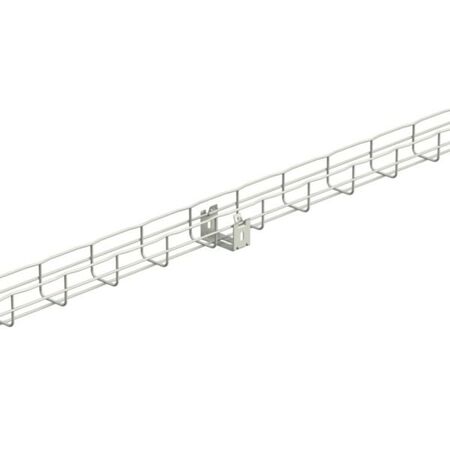

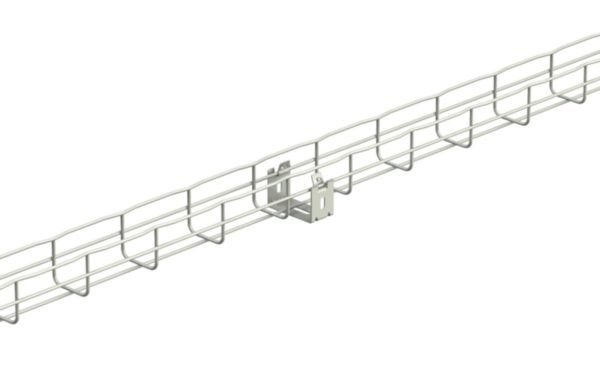

Cablofil Hot Dip Galvanised Steel Wire Cable Tray Support Cradle | 50mm Width | 120N Load Capacity | Screwable Mounting | @EA of 1 | by Cablofil
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Support Cradle is designed for 50mm wide wire mesh trays, offering a robust load capacity of 120N. Ideal for commercial and industrial cable management, this cradle features a screwable mounting system for secure installation, ensuring compliance with AS/NZS 1170 standards. Its hot-dip galvanised steel construction provides excellent corrosion resistance, making it a durable choice for long-term use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray Support Cradle | 50mm Width | 120N Load Capacity | Screwable Mounting | @EA of 1 | by Cablofil
Brand: Cablofil
SKU: CM586043
Alternatively Known As: Cable Tray Support Bracket, Wire Mesh Tray Support Cradle, Galvanised Cable Tray Bracket
Technical Specifications
- Material: Steel
- Surface Protection: Hot-dip galvanised
- Suitable Tray Width: 50 mm
- Suitable Tray Depths: 30 mm and 54 mm
- Load Bearing Capacity: 120 N
- Tray Mounting: Screwable
- Suitable for Wire Mesh Tray: Yes
- Suitable for Cable Ladder: No
- Suitable for Cable Tray: No
- Suitable for Circuit Integrity: No
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Designed specifically for 50mm tray width and 30mm or 54mm depths
- Face out bracket (C-bracket) design
- Screwable tray mounting for secure installation
- Hot-dip galvanised steel construction for corrosion resistance
- Load bearing capacity of 120 N
- Suitable for wire mesh trays only
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable management systems to ensure secure and compliant mounting.
Applications
- Supports for 50mm wide wire mesh cable trays
- Suitable for cable support systems with heights of 50mm
- Used in electrical wiring management in commercial and industrial buildings
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Support Cradle 50mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
