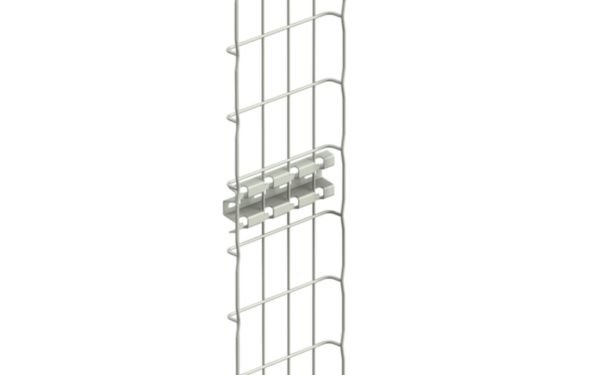

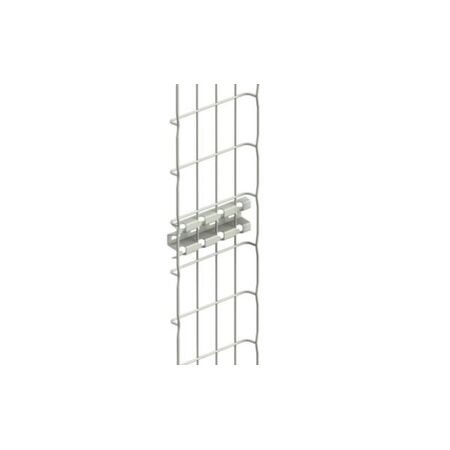

Cablofil Hot Dip Galvanised Steel Wire Cable Tray Support Rail | Corrosion Resistant | S-Profile Design | 1 kN Load Capacity | @EA of 1 | by Cablofil
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Support Rail is designed for robust cable management, featuring a corrosion-resistant hot-dip galvanised finish and a unique S-profile design. With a load-bearing capacity of 1 kN, it's perfect for floor, wall, or trapeze mounting in industrial and commercial settings, ensuring secure and compliant installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray Support Rail | Corrosion Resistant | S-Profile Design | 1 kN Load Capacity | @EA of 1 | by Cablofil
Brand: Cablofil
SKU: CM013303
Alternatively Known As: Steel Cable Tray Support Rail, Galvanised Cable Tray Support, Cable Tray Mounting Rail
Technical Specifications
- Length: 294 mm
- Width: 68 mm
- Height: 25 mm
- Slit width: 25 mm
- Material thickness: 1.5 mm
- Profile shape: S-profile
- Type of perforation: Back perforated
- Hole width: 8.5 mm
- Load bearing capacity: 1 kN
- Material: Steel
- Surface protection: Hot-dip galvanised
- Operating temperature: -20 to 120 °C
- Halogen free: Yes
- Dimensions (H x L x W): 25mm x 294mm x 68mm
- Weight: 0.5 kg
Key Features
- Hot-dip galvanised steel for corrosion resistance
- S-profile singular profile design
- Back perforated with 8.5 mm hole width
- Load bearing capacity of 1 kN
- Halogen free material
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable tray systems to ensure secure mounting and compliance with safety standards.
Applications
- Floor mounting for cable trays
- Wall mounting for cable trays
- Trapeze mounting for cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency and waste
- Halogen free material reduces environmental impact in case of fire
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray Support Rail 300mm is available for immediate purchase, ideal for industrial and commercial cable management applications.
