Trade Discount 20%

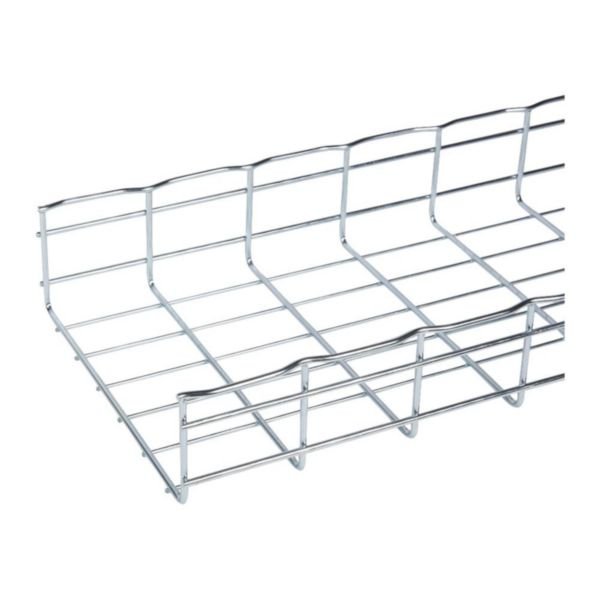

Cablofil Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | 300mm Width | Corrosion Resistant | @EA of 1 | by Cablofil
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. With a robust U-shape profile and hot-dip galvanised steel construction, it offers superior corrosion resistance and natural ventilation for optimal cable performance. Ideal for organizing and protecting cables in data centers, server rooms, and manufacturing facilities, this tray ensures compliance with electrical and building codes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | 300mm Width | Corrosion Resistant | @EA of 1 | by Cablofil
Brand: Cablofil
SKU: CM000923
Alternatively Known As: Steel Wire Cable Tray, Galvanised Cable Tray, Wire Mesh Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 300 mm
- Height: 105 mm
- Length: 3000 mm
- Usable cross section: 31500 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Colour: Zinc
- Weight: Approximately 3.17 kg per meter
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- No integrated partition
- Model without connector
- Not suitable for circuit integrity applications
- Dimensions (H x L x W): 105mm x 3000mm x 300mm
- Weight: 9.5 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation for greater cable efficiency
- Hot-dip galvanised steel construction for superior corrosion resistance
- U-shape profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building codes.
Applications
- Cable management in commercial and industrial buildings
- Electrical wiring support in data centers and server rooms
- Organizing and protecting cables in manufacturing facilities
- Suitable for indoor and outdoor installations requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil warranty terms for details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray 300mm x 105mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
