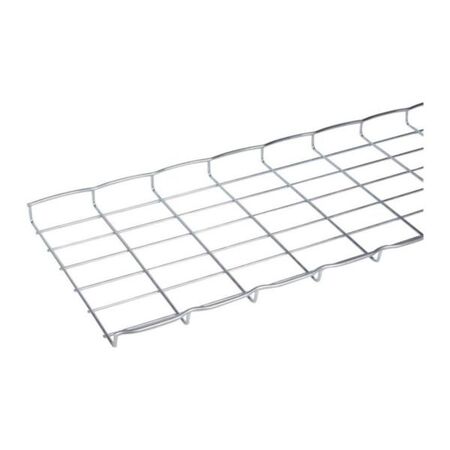

Cablofil Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | 300mm Width | Corrosion Resistant | @Each of 1 | by Cablofil
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray is designed for efficient cable management in industrial and commercial settings. With a robust U-shape profile and hot-dip galvanised steel construction, it offers enhanced corrosion resistance and natural ventilation for optimal cable performance. Ideal for data centers and infrastructure projects, this tray ensures secure support and routing of electrical cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | 300mm Width | Corrosion Resistant | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000053
Alternatively Known As: Steel Wire Cable Tray, Galvanised Cable Tray, Hot Dip Galvanised Cable Tray, U-Shape Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 300 mm
- Height: 30 mm
- Length: 3000 mm
- Usable cross section: 7953 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Colour: Zinc
- Weight: 1.521 kg/m
- Operating temperature: -20°C to 120°C
- Storage temperature: -20°C to 120°C
- Model: Without connector
- Suitable for circuit integrity: No
- Integrated partition: None
- Dimensions (H x L x W): 30mm x 3000mm x 300mm
- Weight: 4.56 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation provides greater cable efficiency
- Hot-dip galvanised steel construction for enhanced corrosion resistance
- U-shape profile for robust cable support
- Operating temperature range from -20°C to 120°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with electrical and building codes.
Applications
- Cable management in industrial, commercial, and residential electrical installations
- Support and routing of electrical cables in data centers, factories, and infrastructure projects
- Suitable for environments requiring corrosion-resistant cable trays
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product lifespan reducing replacement frequency and waste
- Steel is recyclable, supporting sustainable material use
- Natural ventilation design reduces overheating, improving energy efficiency of cable systems
Warranty Information
Standard manufacturer warranty applies; please refer to Cablofil or Legrand for specific warranty details.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray 300mm x 30mm x 3m Length is available for immediate purchase, ideal for industrial and commercial cable management applications.
