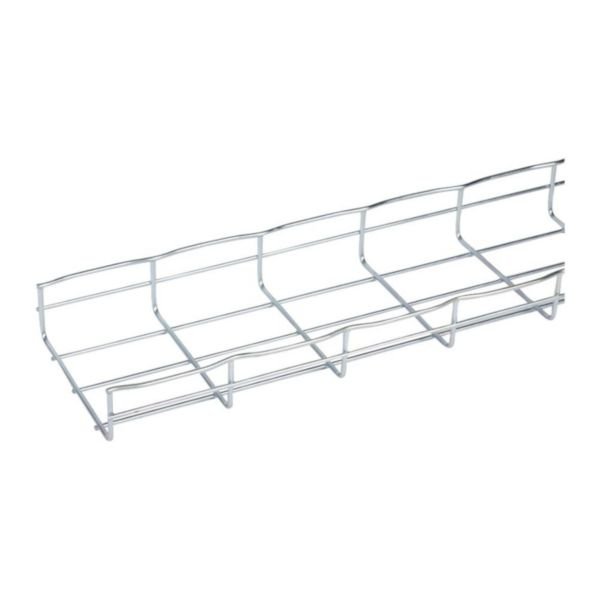

Cablofil Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 150mm Width | @Each of 1 | by Cablofil
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray is designed for efficient cable management in commercial and industrial settings. With a robust U-shape profile and hot-dip galvanised steel construction, it offers excellent corrosion resistance and natural ventilation for optimal cable performance. Ideal for data centers and factories, this tray ensures reliable support and routing of electrical cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cablofil Hot Dip Galvanised Steel Wire Cable Tray | U-Shape Profile | Corrosion Resistant | 150mm Width | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: CM000083
Alternatively Known As: Steel Wire Cable Tray, Galvanised Cable Tray, Wire Mesh Cable Tray, Cable Management Tray
Technical Specifications
- Profile shape: U-shape
- Width: 150 mm
- Height: 54 mm
- Length: 3000 mm
- Usable cross section: 7713 mm²
- Material: Steel
- Surface protection: Hot-dip galvanised
- Operating temperature range: -20 to 120 °C
- Storage temperature range: -20 to 120 °C
- Weight: Approximately 1.08 kg per meter
- Suitable for circuit integrity: Yes
- Model: Without connector
- Dimensions (H x L x W): 54mm x 3000mm x 150mm
- Weight: 3.25 kg
Key Features
- Unique T-welded safety edge protects cables and installers
- Natural ventilation for greater cable efficiency
- Hot-dip galvanised steel construction for corrosion resistance
- U-shape profile for robust cable support
- Suitable for circuit integrity applications
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with cable management systems and electrical safety standards.
Applications
- Cable management in commercial and industrial electrical installations
- Supporting and routing electrical cables in data centers, factories, and buildings
- Suitable for environments requiring corrosion resistance and cable protection
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanised coating extends product life reducing replacement frequency
- Steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies; typically 1-3 years depending on supplier terms.
Available Now
The Cablofil Hot Dip Galvanised Steel Wire Cable Tray 150mm x 54mm x 3m Length is available for immediate purchase, ideal for commercial and industrial cable management applications.
